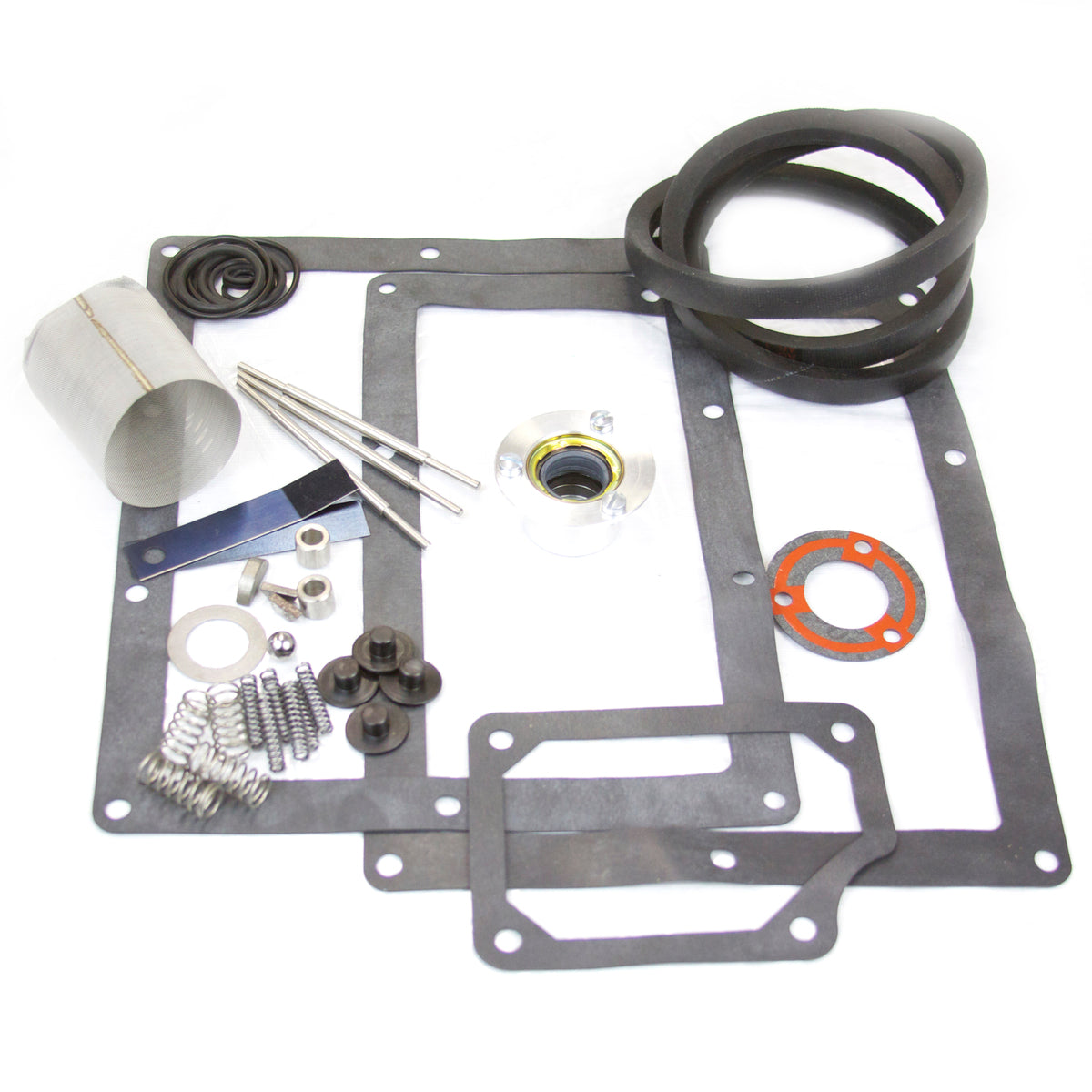

Minor Repair Kit, 1400K-09
Minor Repair Kit includes; O-rings, gaskets, mechanical shaft seals, Valves & other components for light overhaul. Used on Pump Models 1400N
General product classifications
| Brand | Welch |
| Family | Chemstar |
| Pump models | 1400N |
| Category | Repair Kits |
| Subcategory | Minor Kit |
| Country of origin | US |
| Manual page | WELCH-103 |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 410578 | Shaft Seal, Metal Case | 1 |
| 618559A | Vane Spring Pin | 4 |
| 411063 | Spring Holder | 2 |
| 79135 | O-Ring,Viton,10.5 X 2 MM | 1 |
| 612159A | O-Ring,Viton,18.72 X 2.62 MM | 1 |
| 410383 | Intake Cover Gasket | 1 |
| 410890 | Air Filter | 1 |
| 618348A | Baffle Stud | 1 |
| 620118 | O-Ring,SHAPED,#013 | 2 |
| 320083 | O-Ring,Viton,86 X 2.5 MM | 1 |
| 2710040 | Brass Washer, #10 | 2 |
| 411239 | Exhaust Valve | 1 |
| 618355B | Oil Case Gasket, Viton | 1 |
| 40015 | O-Ring,Buna,7.65 X 1.78 MM | 1 |
| 410613 | Woodruff Key, Cut | 2 |
| 411150 | Retaining Ring | 1 |
| 410624 | Woodruff Key, Cut | 1 |
| 619378 | O-Ring,Viton,82.22 X 2.62 MM | 1 |
| 320106 | O-Ring,Viton,25.07 X 2.62 MM | 1 |
| 1401E | Mechanical Shaft Seal with Screws, 0.625" | 1 |
| 410708 | V-Belt | 1 |
| 410643 | Shaft Seal Gasket | 1 |
