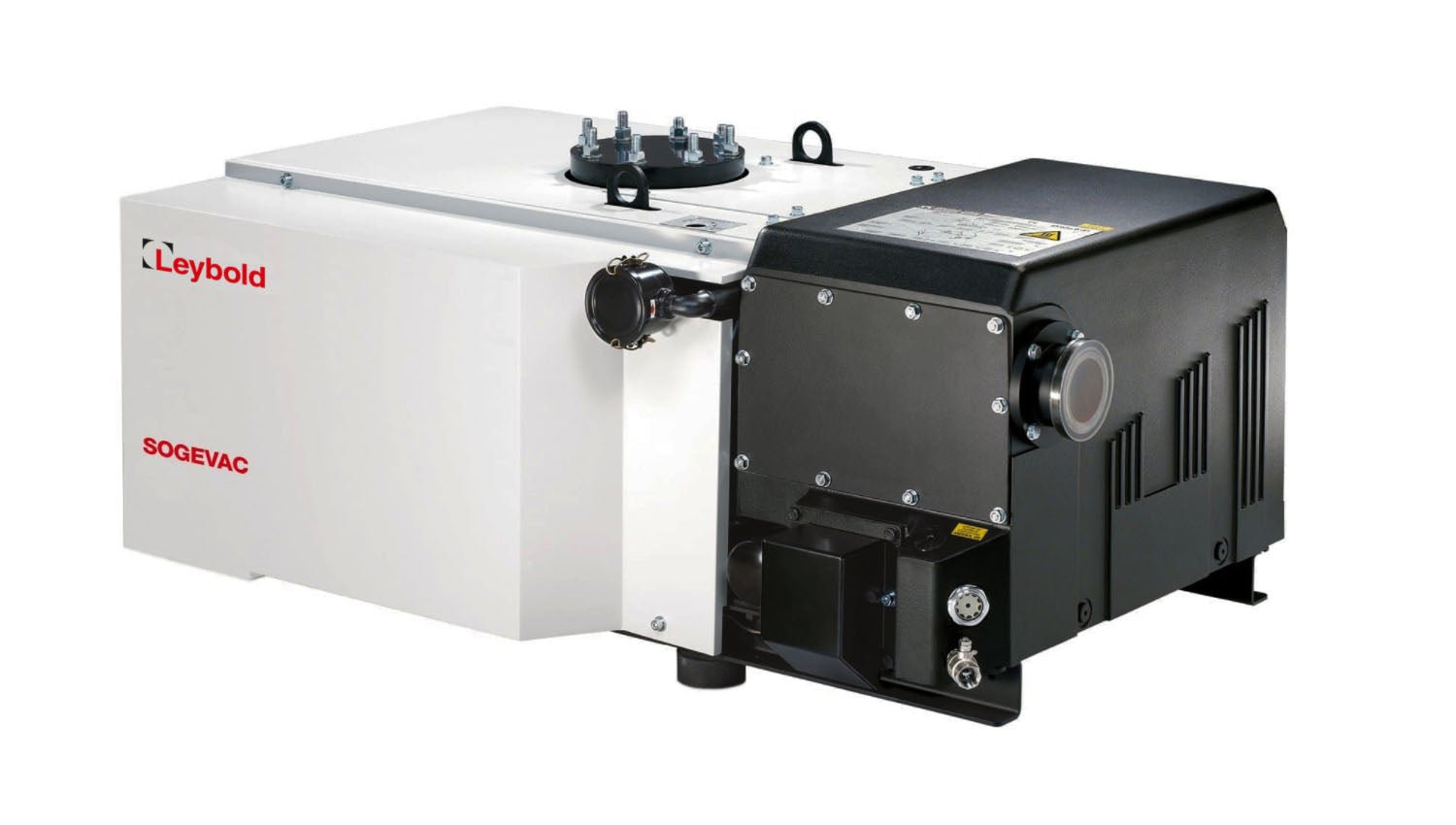

Leybold SOGEVAC SV 300 B Rotary Vane Vacuum Pump – Part # 960707
The Leybold SOGEVAC SV 300 B (PN 960707) is a high-capacity, single-stage oil-sealed rotary vane vacuum pump designed for heavy-duty laboratory and industrial applications requiring high pumping speed and reliable continuous operation.
Key Specifications:
-
Pumping Speed: 240 m³/h (≈ 141 CFM) at 50 Hz | 290 m³/h (≈ 170 CFM) at 60 Hz
-
Ultimate Pressure: ≤ 0.5 mbar (≤ 0.375 Torr)
-
Motor: 230/460V, 3-Phase, 50/60 Hz (NEMA Standard)
-
Oil Type: LEYBONOL LVO 120 (Hydrocarbon)
-
Cooling: Convection / Air-cooled
-
Inlet / Outlet: 2" Female NPT
-
Gas Ballast: Integrated for excellent vapor handling
Ideal Applications:
- Large vacuum ovens and drying systems
- Industrial vacuum processes
- Freeze drying
- Vacuum distillation and degassing
- Central vacuum systems
- Packaging, coating, and metallurgy
Why Choose the Leybold SV 300 B?
- Very high pumping speed in a compact design
- Low noise and vibration levels
- Superior vapor tolerance with gas ballast
- Easy maintenance with accessible oil sight glass and exhaust filter
- Robust Leybold engineering for long service life and high reliability
This is a brand new, genuine Leybold pump backed by full manufacturer warranty. Chemtech Scientific offers competitive pricing, fast shipping, expert technical support, and complete repair services for the entire SOGEVAC B series.
Part Number: 960707 Series: SOGEVAC B Brand: Leybold
Need help comparing this to the SV 220 B, SV 100 B, or other models, selecting accessories (inlet filters, exhaust mist eliminators, oil, etc.), or a repair kit quote? Contact our vacuum specialists at (484) 424-9415 or support@chemtechsci.com.
