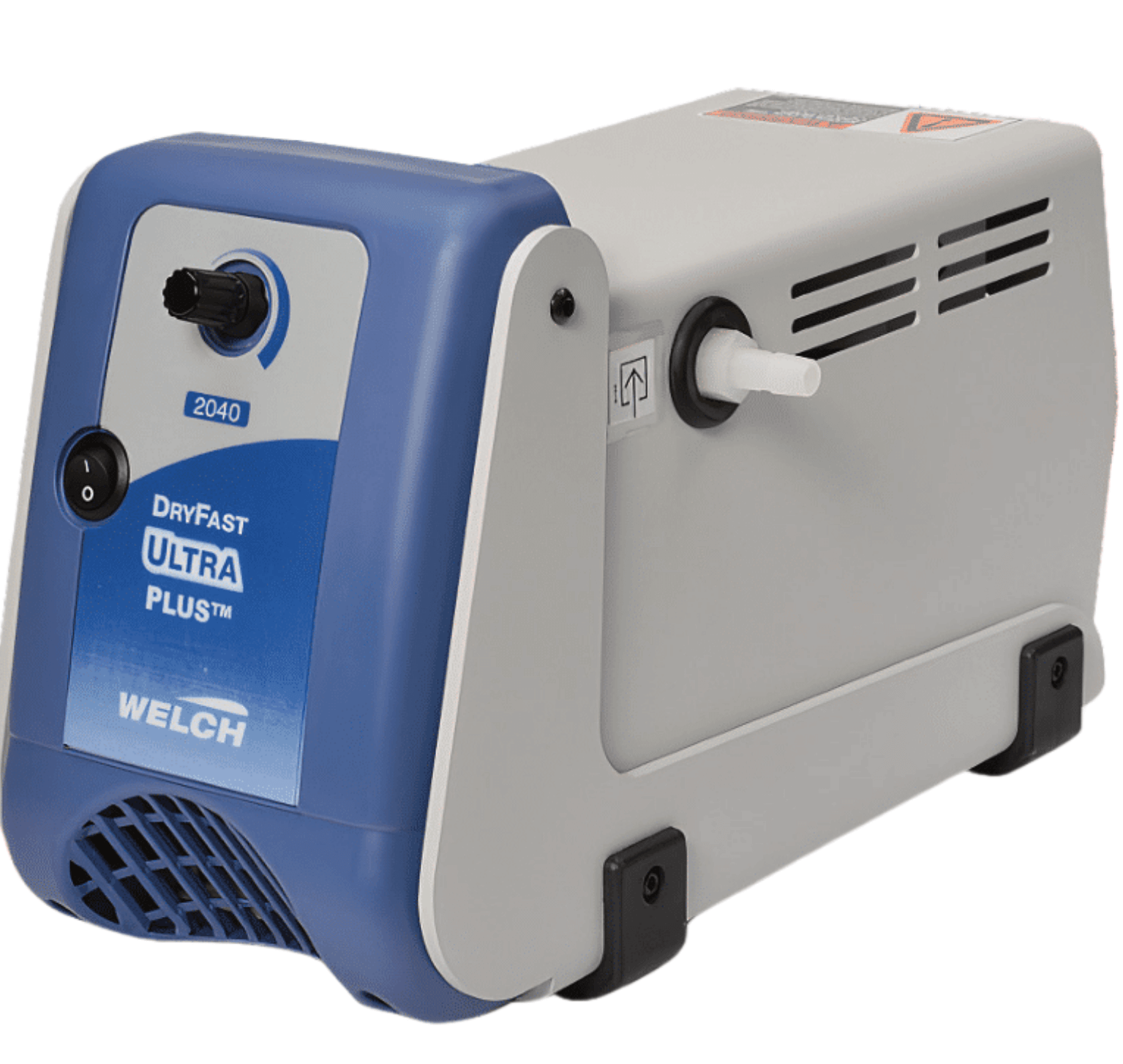

Welch 2040B-01 Dryfast Ultra Plus vacuum pump- The latest in laboratory vacuum technology by Welch Vacuum achieves 0.75 Torr ultimate vacuum, 40 liters per minute pumping speed in a small footprint, lightweight, full chemical duty PTFE diaphragm vacuum pump. The Welch 2040B-01 has a built in vacuum controller to control anywhere from atmosphere down to 0.75 Torr and is suitable for a wide array of vacuum processes.

Smaller footprint, quieter, lighter weight and controllable vacuum. The Welch 2040 should be considered prior to ordering a scroll vacuum pump.

Built and supported in the USA with a reliable supply chain!



SPECIFICATIONS MODEL 2040
Ult. Vac. Pressure, torr (mbar)   0.75 (1)
Free Air Displacement 40 Lit/min
Maximum Vacuum, in. Hg  29.9
Number heads/Stages  2/2
Motor Horsepower, HP (watts)  1/5 (150)
Adjustable Vac/Gas Ballast  Yes
Tubing Needed, I.D., in (mm) 1/4 (7)
Intake(Exhaust) Thread NPT  M14 (1/8)
Weight lbs.(kg)  21.25 (9.6)
Overall Dimensions, LxWxH in.(cm) 13.8x6.8x8.8 (35x17x22)
Ship Weight, lbs (kg)  25 (11.3)
Shipping Carton Dimensions, LxWxH in.(cm) 21x14x15 (52x35x37)
ORDERING INFORMATION 2040
Wired for 115V, 60Hz, 1Ph 2040B-01
Wired for 230V, 50/60Hz, 1Ph 2040C-02
