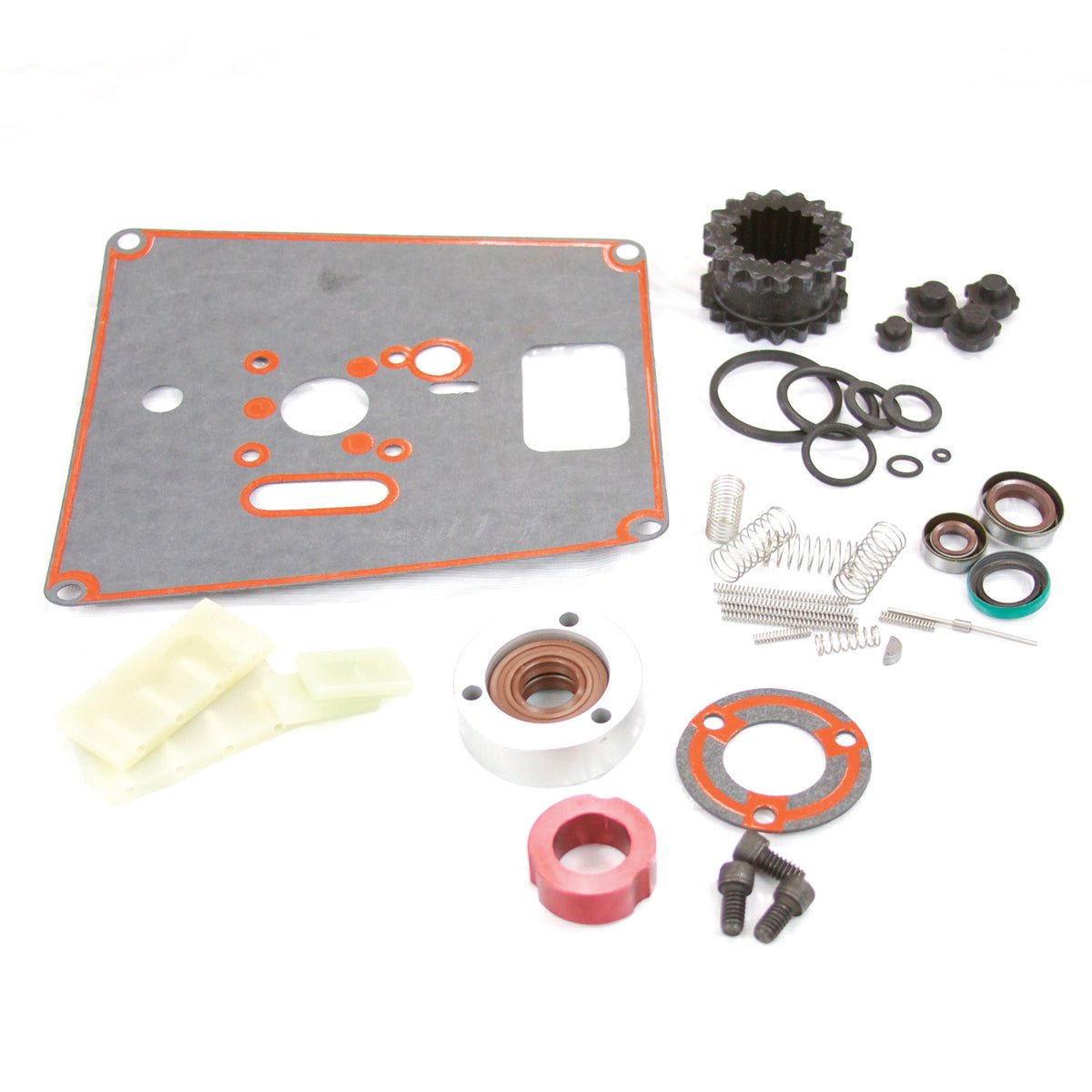

Major Repair Kit with GX Vanes M16CMRK
Used on Fisher Scientific Maxima M16C
Major Repair Kit with GX Vanes includes; O-rings, gaskets, shaft seals, keys, Valves, drip pads, coupling, springs, washers, Vanes, and other components for minor overhaul.
General product classifications
| Brand | Fisher Scientific |
| Family | Maxima |
| Pump models | M16C |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | FISHERSCI-58 |
| Part number alternatives | 23F-M16C-V |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 619560A | Exhaust Bypass Valve, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 619560A | 3 |
| 413073 | Coupling Sleeve, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 413073 | 1 |
| 619570A | Vane, Exhaust - GX, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 619570A | 2 |
| 619561A | Exhaust Valve Spring, Fisher Scientific, Galileo, Varian - Agilent, Welch, Part# 619561A | 1 |
| 619582A | Valve, Bypass, Spring, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 619582A | 2 |
| 619571B | Vane, Intake - GX, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 619571B | 2 |
| 411401D-01 | Shaft Seal Kit - 0.750", Welch, Part# 411401D-01 | 1 |
| 616093 | Thrust Washer, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 616093 | 1 |
| 412962 | Shaft Seal, 3/8", Welch, Maxima, DirecTorr, Part# 412962 | 1 |
| 412996 | Vane Spring, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 412996 | 5 |
| 413005 | O-ring, 4.47 x 1.78 mm - Viton, Part# 413005 | 1 |
| 619378 | O-ring, 82.22 x 2.62 mm - Viton, Part# 619378 | 1 |
| 619379 | O-ring, 55.25 x 2.62 mm - Viton, Part# 619379 | 1 |
| 619282A | O-ring, 7.65 x 1.78 mm - Viton, Part# 619282A | 1 |
| 616091 | Plunger, Oil Feed, Exhaust, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 616091 | 1 |
| 612231 | O-ring, Shaped ring - Viton, Part# 612231 | 1 |
| 612229A | Oil Sight Glass, Fisher Scientific, Welch, Part# 612229A | 1 |
| 612204A | Gas Ballast Spring, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 612204A | 1 |
| 612157A | O-ring, 3.68 x 1.78 mm - Viton, Part# 612157A | 1 |
| 619609B | Pump Gasket, Beaded- Fisher Scientific, Maxima, DirecTorr, Part# 619609B | 1 |
| 619742 | Drip Pad, Felt, Welch, Maxima, Part# 619742 | 1 |
| 619916 | Gasket, Special, for Repair Kit, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 619916 | 1 |
| 620118 | O-ring, Shaped, 11 mm ID X 14 mm OD - Viton, Part# 620118 | 2 |
| 660200 | O-ring, 28.17 x 3.53 mm - Viton, Part# 660200 | 1 |
| 619418B | Gasket, Special, for Repair Kit, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 619418B | 1 |
| 413175 | Washer Gasket, Nylon, Fisher Scientific, Welch, Part# 413175 | 1 |
| 612118A | Gas Ballast Valve, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 612118A | 1 |
| 413390 | Shaft Seal, 3/4", Welch, Maxima, DirecTorr, M8C, M12C, Part# 413390 | 1 |
| 612130A | O-ring, 17.12 x 2.62 mm - Viton, Part# 612130A | 1 |
