Explosion Proof Motor Vacuum Pumps

Explosion proof motor vacuum pumps are specially designed for use in hazardous locations where flammable gases, vapors, or combustible dusts are present. These pumps are equipped with UL-listed explosion-proof motors that meet strict safety standards (Class I, Groups C & D for gases/vapors and Class II, Groups F & G for dust).

Why Choose Explosion Proof Vacuum Pumps?

Certified for hazardous environments (Class I Div 1 & 2)
Prevents internal sparks from igniting surrounding atmosphere
Robust construction for demanding industrial applications
Available on popular Welch rotary vane and diaphragm pump platforms
Full compliance with NEC and NFPA safety requirements

How Explosion Proof Motors Work

Explosion-proof motors are engineered with heavy-duty enclosures that contain any internal explosion or spark, preventing it from igniting the external hazardous atmosphere. The motor housing is designed to cool escaping gases below the ignition temperature before they exit the enclosure.

Key Features of Our Welch Explosion Proof Pumps

Factory-installed explosion-proof motors (115/230V options)
Rated for Class I, Groups C & D and Class II, Groups F & G
Available on both belt-drive (DuoSeal) and direct-drive models
Reliable performance while maintaining full Welch pump specifications
Ideal for upgrading existing systems in hazardous areas

Popular Models We Carry

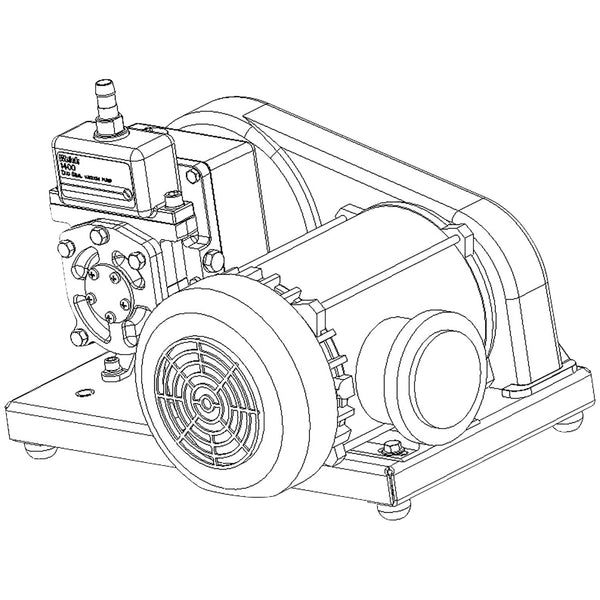

Welch 1400W-01 – 0.9 CFM compact model

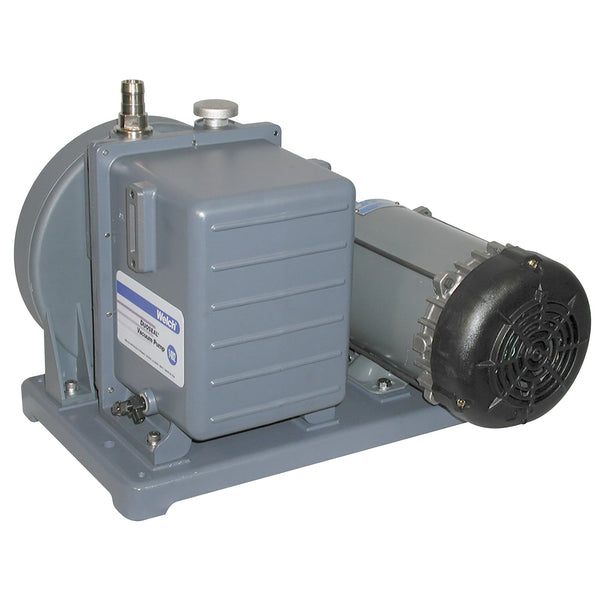

Welch 1402W-01 – 5.6 CFM best-seller for general lab/process use

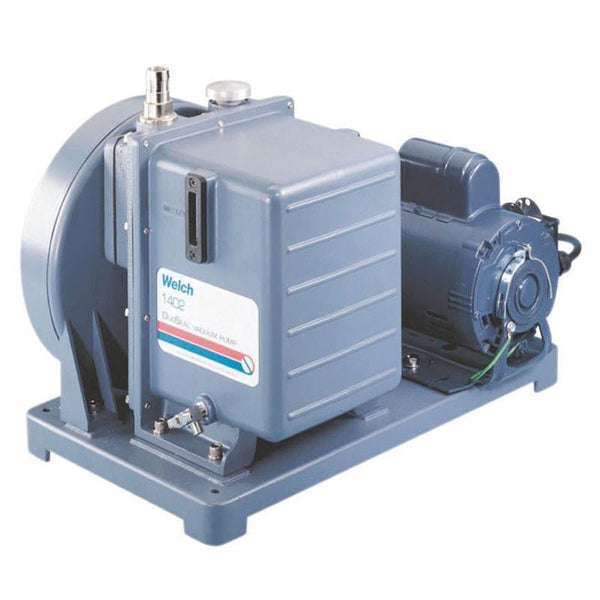

Welch 1405W-01 – 3.2 CFM intermediate model

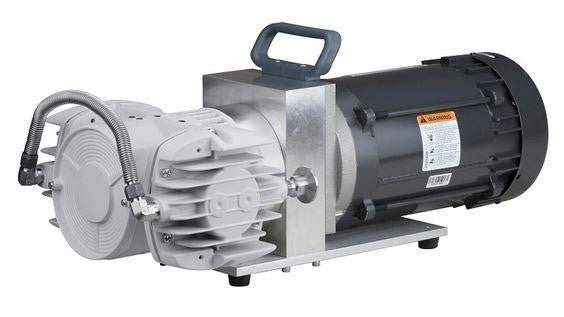

Welch 2090W-01 – Chemical-resistant diaphragm pump (oil-free)

Best Applications

Chemical processing plants
Petroleum refineries and gas plants
Pharmaceutical manufacturing (flammable solvents)
Solvent recovery systems
Paint & coating production
Hazardous waste handling
Any Class I or Class II Division 1 / Division 2 environments

Important Safety Note

Always verify the exact classification of your hazardous location with a qualified engineer before selecting equipment. Proper installation, grounding, and maintenance are critical for safety.

Chemtech Scientific offers genuine Welch explosion proof motor vacuum pumps, full repair service for hazardous location equipment, and expert technical support to help you select the right model for your environment.

Academic & Research Discounts Available — Contact us for special pricing on certified equipment
