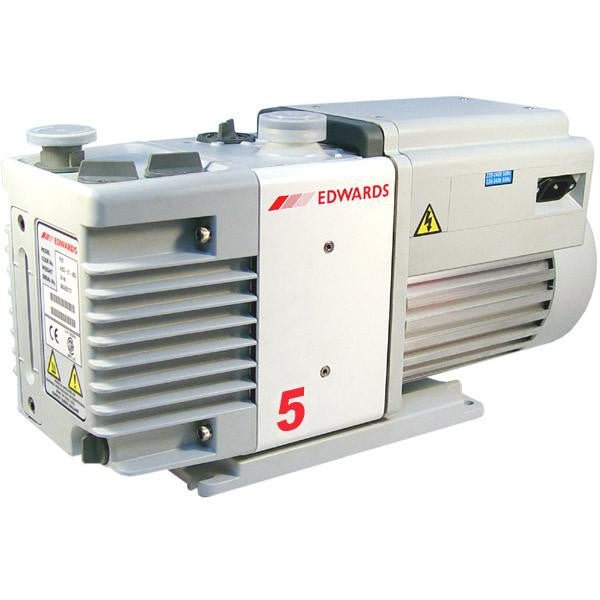

Edwards RV5 Two Stage Rotary Vane Vacuum Pump 115/230V | A65301906
Edwards RV5 Two Stage Rotary Vane Vacuum Pump – 4.1 CFM, 115/230V 1-Phase 50/60Hz (Factory Set to 115V for USA) (A65301906)
The Edwards RV5 (part number A65301906) is a compact and reliable two-stage oil-sealed rotary vane vacuum pump from the popular RV series. This single-phase model is factory set to 115V for USA operation (switchable to 230V) with 50/60 Hz compatibility, making it an excellent plug-and-play solution for North American laboratories, universities, and light industrial facilities.
With a pumping speed of 4.1 CFM (6.9 m³/h at 60 Hz) and an excellent ultimate vacuum of 2 × 10⁻³ mbar (1.5 × 10⁻³ Torr), the RV5 delivers consistent performance, high vapor tolerance, and quiet operation in a small, benchtop-friendly package.
The RV series is known for its versatility, excellent vapor handling, and long-term reliability, making the RV5 a popular choice for a wide range of general laboratory vacuum applications.
Key Features and Benefits
- Two-stage rotary vane design for good ultimate vacuum and high vapor handling
- Pumping speed: 4.1 CFM (6.9 m³/h) at 60 Hz
- Quiet operation at 48 dB(A) at 50 Hz — ideal for benchtop laboratory use
- Single-phase motor: 115/230V, 50/60 Hz, factory set to 115V for USA
- Adjustable gas ballast for improved handling of condensable vapors
- Advanced lubrication system for reliable long-term performance
- NW25 inlet flange for easy system integration
- Compact, rugged design suitable for benchtop or freestanding installation
Technical Specifications
| Specification | Value |
|---|---|
| Pumping Speed (60 Hz) | 4.1 CFM / 6.9 m³/h |
| Pumping Speed (50 Hz) | 3.4 CFM / 5.8 m³/h |
| Ultimate Vacuum (without gas ballast) | 2 × 10⁻³ mbar / 1.5 × 10⁻³ Torr |
| Motor Power | 0.45 – 0.55 kW |
| Voltage / Frequency | 115/230V, 1-phase, 50/60 Hz (factory set to 115V) |
| Noise Level | 48 dB(A) at 50 Hz |
| Inlet / Outlet Flange | NW25 (KF25) |
| Max Water Vapor Pumping Rate | Up to 220 g/h |
| Oil Type (supplied) | Ultragrade 19 |
| Oil Capacity (min / max) | 0.42 / 0.7 liters |
| Weight | Approx. 25 kg / 55 lbs |
| Operating Temperature Range | 12 – 40°C |
Why Choose the Edwards RV5? The RV series is highly regarded for its balance of size, performance, and reliability. The A65301906 version is specifically configured for easy 115V USA operation. It is an excellent all-around vacuum pump for users needing a compact, quiet, and versatile solution for everyday laboratory work.
Applications
- Laboratory vacuum systems
- Mass spectrometry and analytical instruments
- Vacuum drying and degassing
- Small vacuum ovens
- Leak detection
- General roughing and backing pump duties
What's Included
- Edwards RV5 Rotary Vane Vacuum Pump (A65301906)
- Ultragrade 19 vacuum pump oil (initial charge)
- NW25 centering ring and O-ring
Note: For corrosive or aggressive vapor applications, consider the PFPE-prepared RV5F variant (A65309906).
The Edwards RV5 two-stage rotary vane vacuum pump (A65301906) delivers compact size, quiet operation, excellent vapor handling, and reliable performance for laboratory and light industrial vacuum needs.
Edwards RV5 Two Stage Rotary Vane Vacuum Pump – 4.1 CFM, 115/230V 1-Phase 50/60Hz (Factory Set to 115V for USA) (A65301906)
The Edwards RV5 (part number A65301906) is a compact and reliable two-stage oil-sealed rotary vane vacuum pump from the popular RV series. This single-phase model is factory set to 115V for USA operation (switchable to 230V) with 50/60 Hz compatibility, making it an excellent plug-and-play solution for North American laboratories, universities, and light industrial facilities.
With a pumping speed of 4.1 CFM (6.9 m³/h at 60 Hz) and an excellent ultimate vacuum of 2 × 10⁻³ mbar (1.5 × 10⁻³ Torr), the RV5 delivers consistent performance, high vapor tolerance, and quiet operation in a small, benchtop-friendly package.
The RV series is known for its versatility, excellent vapor handling, and long-term reliability, making the RV5 a popular choice for a wide range of general laboratory vacuum applications.
Key Features and Benefits
- Two-stage rotary vane design for good ultimate vacuum and high vapor handling
- Pumping speed: 4.1 CFM (6.9 m³/h) at 60 Hz
- Quiet operation at 48 dB(A) at 50 Hz — ideal for benchtop laboratory use
- Single-phase motor: 115/230V, 50/60 Hz, factory set to 115V for USA
- Adjustable gas ballast for improved handling of condensable vapors
- Advanced lubrication system for reliable long-term performance
- NW25 inlet flange for easy system integration
- Compact, rugged design suitable for benchtop or freestanding installation
Technical Specifications
| Specification | Value |
|---|---|
| Pumping Speed (60 Hz) | 4.1 CFM / 6.9 m³/h |
| Pumping Speed (50 Hz) | 3.4 CFM / 5.8 m³/h |
| Ultimate Vacuum (without gas ballast) | 2 × 10⁻³ mbar / 1.5 × 10⁻³ Torr |
| Motor Power | 0.45 – 0.55 kW |
| Voltage / Frequency | 115/230V, 1-phase, 50/60 Hz (factory set to 115V) |
| Noise Level | 48 dB(A) at 50 Hz |
| Inlet / Outlet Flange | NW25 (KF25) |
| Max Water Vapor Pumping Rate | Up to 220 g/h |
| Oil Type (supplied) | Ultragrade 19 |
| Oil Capacity (min / max) | 0.42 / 0.7 liters |
| Weight | Approx. 25 kg / 55 lbs |
| Operating Temperature Range | 12 – 40°C |
Why Choose the Edwards RV5? The RV series is highly regarded for its balance of size, performance, and reliability. The A65301906 version is specifically configured for easy 115V USA operation. It is an excellent all-around vacuum pump for users needing a compact, quiet, and versatile solution for everyday laboratory work.
Applications
- Laboratory vacuum systems
- Mass spectrometry and analytical instruments
- Vacuum drying and degassing
- Small vacuum ovens
- Leak detection
- General roughing and backing pump duties
What's Included
- Edwards RV5 Rotary Vane Vacuum Pump (A65301906)
- Ultragrade 19 vacuum pump oil (initial charge)
- NW25 centering ring and O-ring
Note: For corrosive or aggressive vapor applications, consider the PFPE-prepared RV5F variant (A65309906).
The Edwards RV5 two-stage rotary vane vacuum pump (A65301906) delivers compact size, quiet operation, excellent vapor handling, and reliable performance for laboratory and light industrial vacuum needs.
-
edwards-emf10-mist-filter-a46226000
-
edwards-filter-oil-element-emf10-a22304198
-

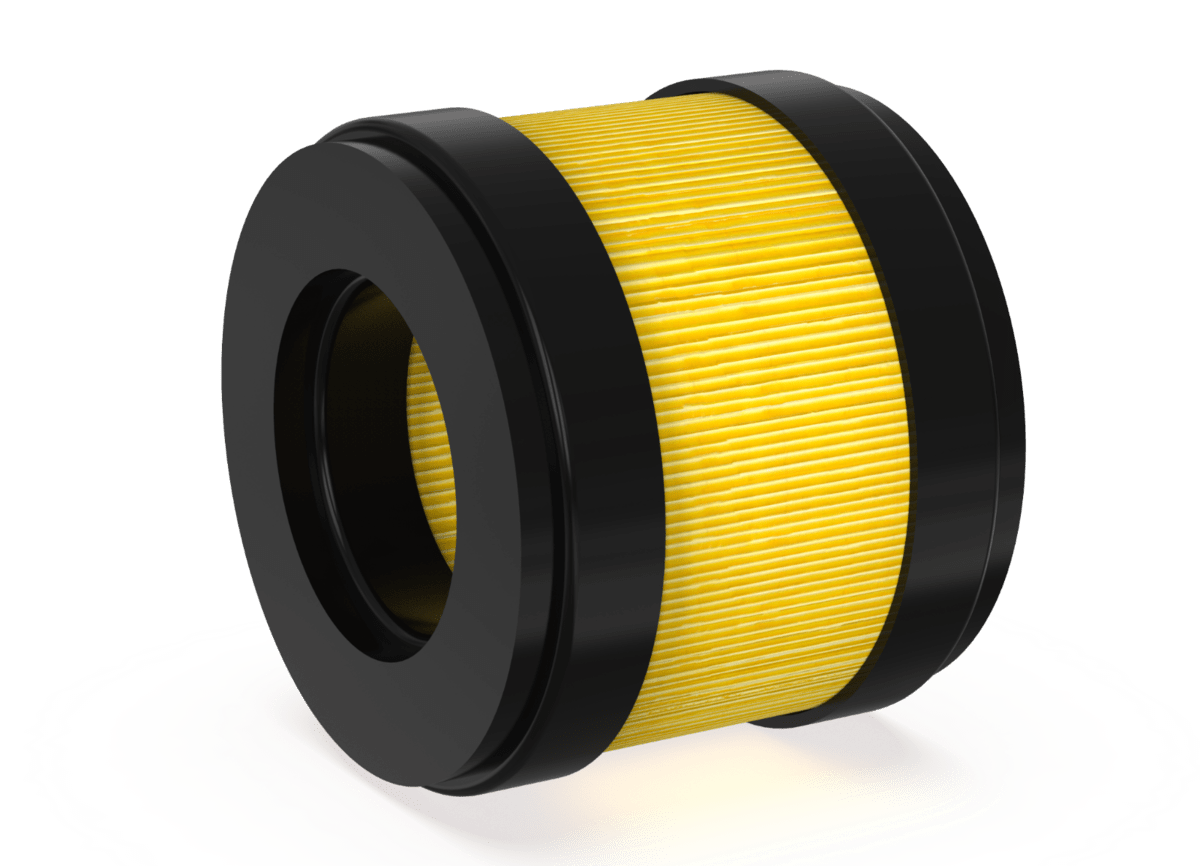

odour-removal-element-emf10-pk5-a22304079
-
