Edwards E2M28 Two Stage Rotary Vane Vacuum Pump – 19.5 CFM | 115/230V | A37317984

Price Each	Quantity
Price: $ 5,852.25 $ 8,660.00	Quantity:	Add to Cart

Ask us a question

Details
Manuals and Documents
Accessories
Repair Kits
Applications

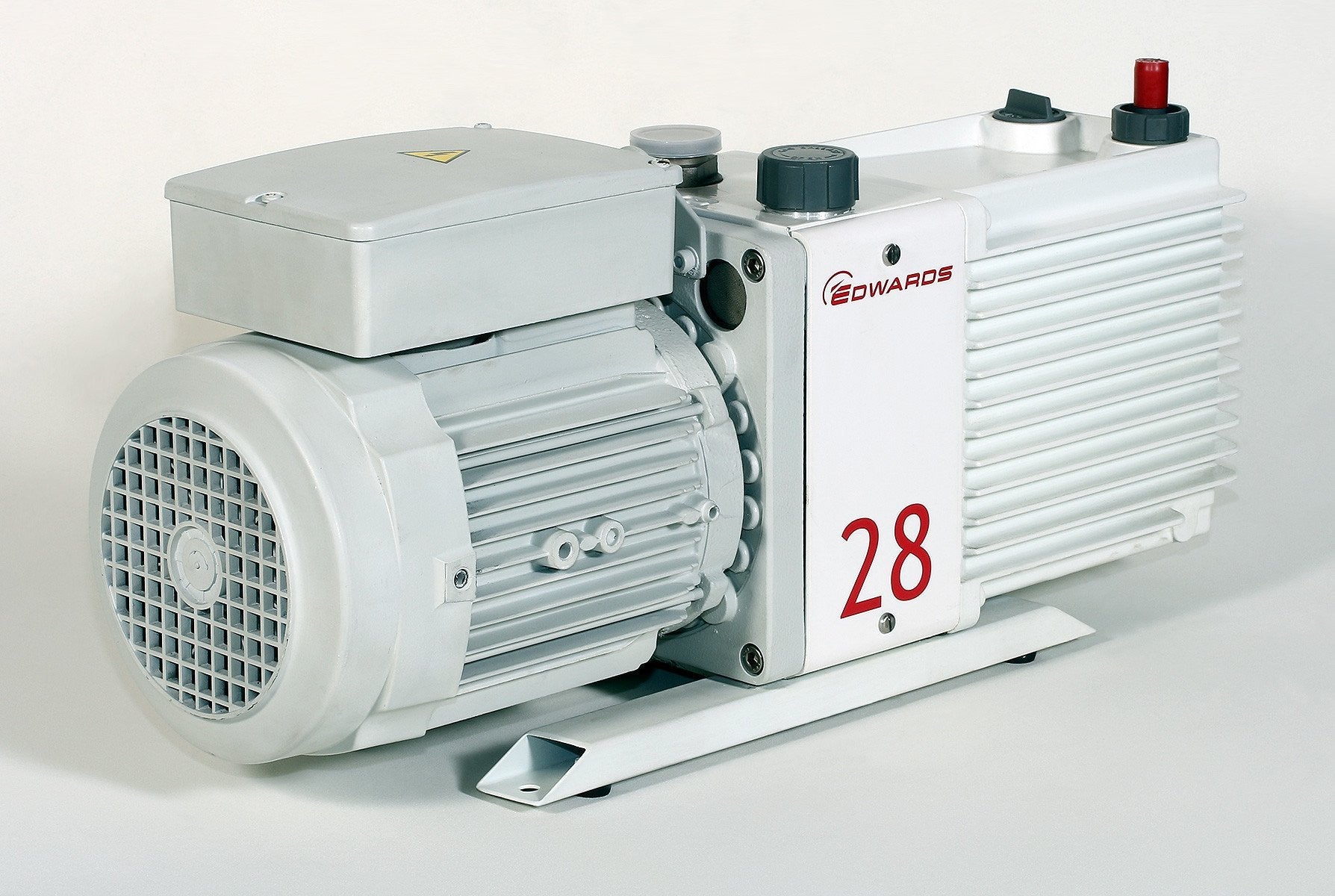

Edwards E2M28 Two Stage Rotary Vane Vacuum Pump – 19.5 CFM, 115/200-230V 1-Phase with IEC60320 Connector (A37317984)

The Edwards E2M28 (part number A37317984) is a high-capacity two-stage oil-sealed rotary vane vacuum pump from the reliable EM series. This single-phase model features a convenient IEC60320 power connector and supports 115/200-230V 50/60 Hz, making it easy to install in laboratory and light industrial environments.

With a strong pumping speed of 19.5 CFM (33.0 m³/h) at 60 Hz and an excellent ultimate vacuum of 1 × 10⁻³ mbar (7.5 × 10⁻⁴ Torr) without gas ballast, the E2M28 delivers faster pump-down times and deeper vacuum than the smaller E2M18 models. It offers superior vapor handling, quiet operation, and proven long-term reliability for demanding roughing and backing applications.

Key Features and Benefits

Two-stage rotary vane design for deep ultimate vacuum and excellent vapor tolerance
High pumping speed of 19.5 CFM (33.0 m³/h) at 60 Hz
Quiet operation at 57 dB(A) — suitable for laboratory settings
Single-phase motor with IEC60320 C19 connector for simple plug-and-play installation
Adjustable gas ballast for improved handling of condensable vapors
Advanced pressurized oil lubrication system for long service life and reliability
Thermal overload protection with automatic reset
NW25 inlet flange for easy system integration
Rugged freestanding design built for continuous operation

Technical Specifications

Specification	Value
Pumping Speed (60 Hz, Pneurop)	19.5 CFM / 33.0 m³/h
Displacement (60 Hz)	22.3 CFM / 38.9 m³/h
Ultimate Vacuum (without gas ballast)	1 × 10⁻³ mbar / 7.5 × 10⁻⁴ Torr
Ultimate Vacuum (with gas ballast)	~1.5 × 10⁻² mbar
Motor Power (60 Hz)	0.90 kW
Voltage / Frequency	115/200-230V, 1-phase, 50/60 Hz
Power Connector	IEC60320 C19
Noise Level	57 dB(A)
Inlet Flange	NW25 (KF25)
Outlet Connection	15 mm external diameter nozzle (removable from 3/4" BSP)
Max Water Vapor Pumping Rate	0.7 kg/h
Oil Capacity	1.2 – 1.5 liters
Recommended Oil	Ultragrade 19 (supplied)
Weight	44 kg / 97 lbs
Operating Temperature Range	13 – 40°C

Why Choose the Edwards E2M28? The E2M28 provides significantly higher pumping capacity than the E2M18 while maintaining the EM series’ reputation for quiet, dependable performance and easy maintenance. The single-phase IEC connector version offers plug-and-play convenience for users with 115/200-230V power.

Applications

Laboratory vacuum systems
Mass spectrometry and analytical instruments
Vacuum drying and degassing
Vacuum ovens and freeze dryers
Refrigeration and air conditioning service
Light industrial processes and backing pumps
General roughing applications requiring higher throughput

What's Included

Edwards E2M28 Rotary Vane Vacuum Pump (A37317984)
Ultragrade 19 vacuum pump oil (initial charge)
NW25 centering ring and O-ring
Spare seals for oil drain and filler plugs

Note: Power cord / mains cable is not included (requires IEC C20 plug on the cable side). For corrosive or aggressive vapor applications, consider the PFPE-prepared E2M28FX variants.

The Edwards E2M28 two-stage rotary vane vacuum pump (single-phase with IEC connector) delivers higher capacity, excellent vapor handling, quiet operation, and long-term reliability for laboratory and light industrial vacuum needs.
