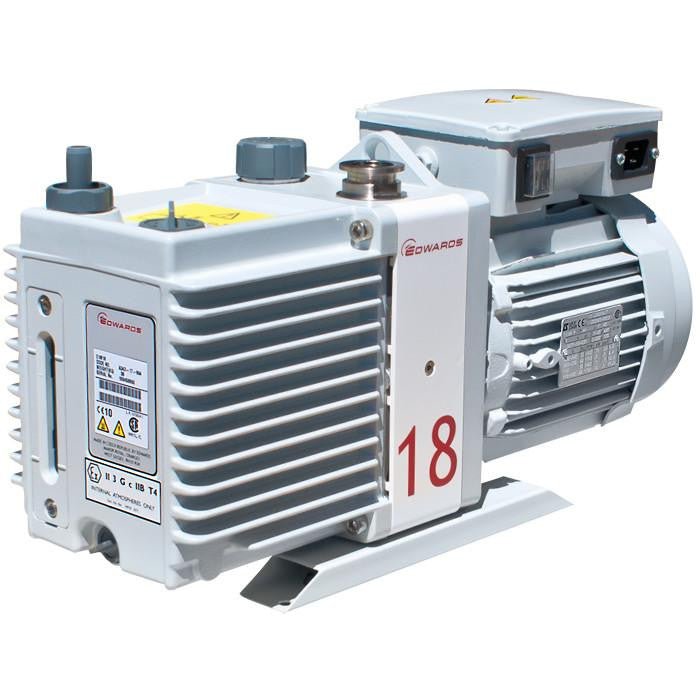

Edwards E2M18FX Two Stage Rotary Vane Vacuum Pump – 12.1 CFM PFPE Prepared (A36325984)
The Edwards E2M18FX (part number A36325984) is a robust two-stage oil-sealed rotary vane vacuum pump from the proven EM series, specially PFPE prepared (FX version) for use with corrosive and aggressive chemical vapors. Designed for demanding laboratory and light industrial applications, it delivers reliable high pumping speeds, excellent ultimate vacuum, and superior chemical resistance when paired with PFPE oils such as Fomblin® or Krytox®.
This direct-drive pump is an ideal choice for processes involving aggressive gases, solvents, or reactive compounds where standard hydrocarbon oils would degrade quickly. Typical applications include chemical processing, semiconductor work, mass spectrometry, vacuum drying, leak detection, and other harsh vacuum environments that require deeper vacuum levels and enhanced material compatibility.
Key Features and Benefits
- Two-stage rotary vane design for superior ultimate vacuum and excellent vapor tolerance
-
PFPE prepared (FX version) — compatible with inert PFPE oils for handling corrosive and aggressive vapors
- Quiet operation at 57 dB(A) — suitable for laboratory settings
- High pumping speed of 12.1 CFM (20.4 m³/h) at 60 Hz
- Dual-voltage single-phase motor (115/200-230V, 50/60 Hz) with IEC60320 connector (factory configured for easy setup)
- Advanced pressurized lubrication system for long service life and reliability
- Gas ballast control for improved handling of condensable vapors
- Thermal overload protection with automatic reset
- NW25 inlet flange for simple system integration
- Compact freestanding design with flexible mounting options
Technical Specifications
| Specification |
Value |
| Pumping Speed (60 Hz, Pneurop) |
12.1 CFM / 20.4 m³/h |
| Displacement (60 Hz) |
14.7 CFM / 25.0 m³/h |
| Ultimate Vacuum (without gas ballast) |
1 × 10⁻³ mbar / 7.5 × 10⁻⁴ Torr |
| Ultimate Vacuum (with gas ballast) |
~5 × 10⁻³ mbar (partial pressure) |
| Motor Power (60 Hz) |
0.75 kW / 1 HP |
| Voltage / Frequency |
115/200-230V, 1-phase, 50/60 Hz |
| Noise Level |
57 dB(A) |
| Inlet Flange |
NW25 (KF25) |
| Outlet Connection |
15 mm external diameter nozzle (removable from 3/4" BSP) |
| Max Water Vapor Pumping Rate |
0.3 kg/h |
| Oil Capacity (max / min) |
1.05 L / 0.75 L |
| Default Oil Type (for FX version) |
PFPE (Fomblin® Y VAC 06/6 or Krytox® – ordered separately) |
| Weight |
39 kg / 86 lbs |
| Operating Temperature Range |
13–40°C |
| Power Connector |
IEC EN60320 C19 / C14 |
Why Choose the Edwards E2M18FX? The FX variant is specifically prepared for PFPE oil service, offering significantly better resistance to chemical attack compared to standard E2M18 pumps. This makes it the preferred choice for aggressive or corrosive applications while maintaining the excellent performance, quiet operation, and reliability of the EM series. The two-stage design achieves deeper vacuum levels than single-stage models, ensuring consistent results in sensitive processes.
Applications
- Chemical and pharmaceutical vacuum processes
- Semiconductor and thin-film coating
- Mass spectrometry and analytical instruments
- Vacuum drying and degassing of reactive materials
- Leak detection systems
- Harsh industrial vacuum environments
What's Included
- Edwards E2M18FX Rotary Vane Vacuum Pump (A36325984)
- NW25 centering ring and O-ring
- Spare seals for oil drain and filler plugs
- Installation tools (Allen keys)
Note: PFPE oil (Fomblin® or equivalent) is not supplied with FX pumps and must be ordered separately.
The Edwards E2M18FX two-stage rotary vane vacuum pump combines high performance, chemical compatibility, and quiet operation — delivering dependable vacuum in even the most challenging environments.
