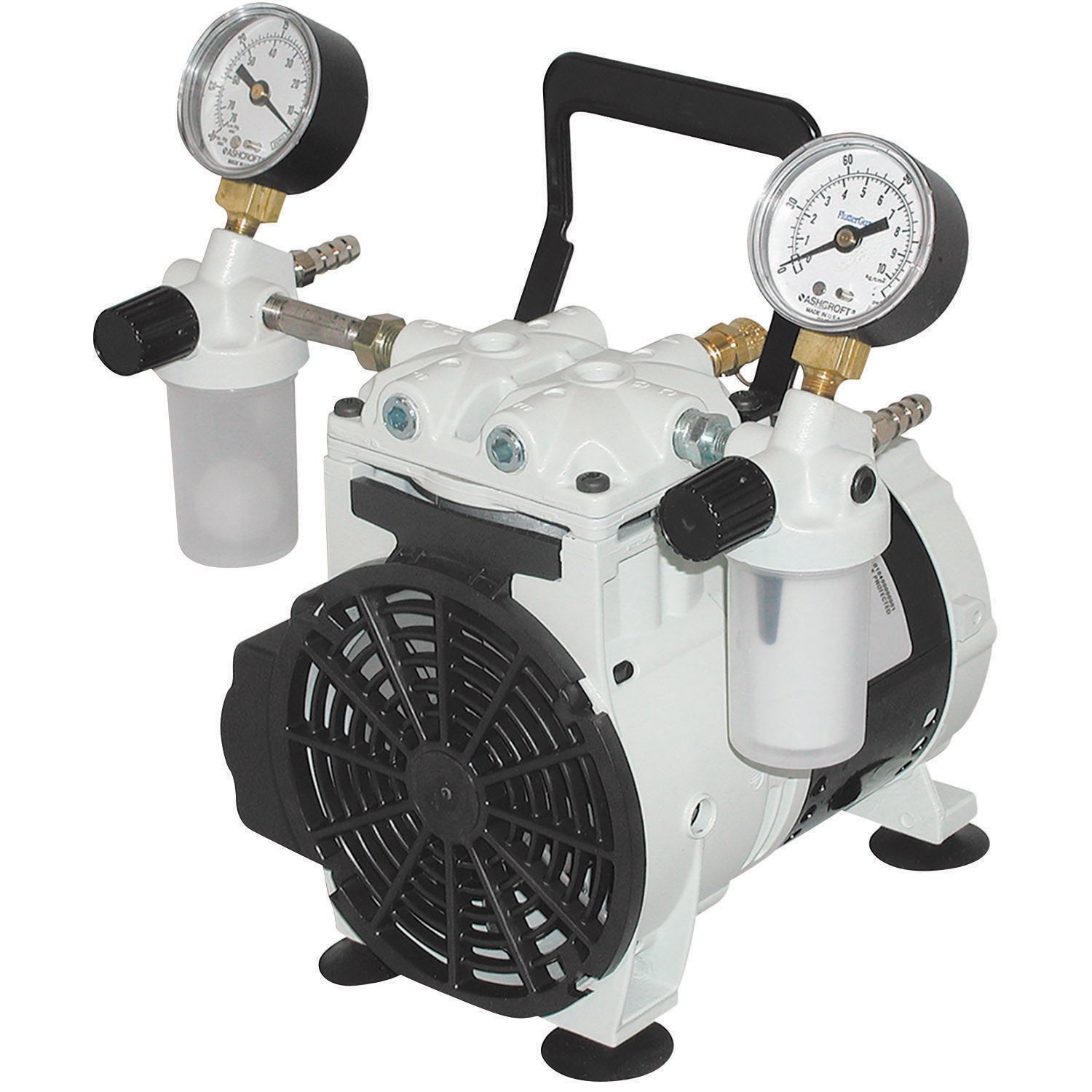

Welch 2546B-01 WOB-L Dry Piston / Pressure Vacuum Pump
|
The Welch 2546B-01 is a one head WOB-L piston vacuum pump. The cast aluminum housing assures durability. The inlet side vacuum gauge and controller sit atop a catchpot with a built in float ball to protect the pump from flooding. The 2546B-01 is a bargain for it's performance and quality, without competition. Warning: The 2546B-01 is a standard duty vacuum pump. The 2546B-01 pump will fail prematurely if operated on chemical duty applications. Please consult your Chemtech Scientific Representative for consultation, should your process include organic/acid/base/corrosive materials. |
|
| What's included | Vacuum and pressure gauges, controller, float ball flooding protection |
| Common accessory, not included | Foot switch control 1430A or 1430B |
| Pumping Speed | 45 Lit/min. (1.6 CFM) |
| Max. Vacuum | 60 Torr 27.6" Hg |
| Tubing Needed | 1/4" ID |
| Inlet Connection | UNIBARB |
| Exhaust | 1/4" ID |
| Max. Pressure | 100 PSI |
| Dimensions LxWxH inches | 10x7.5x9 inches |
| Ship Weight | 13 LBS |
| Wiring | 115V, 60 hz |
|
The Welch 2546B-01 is a one head WOB-L piston vacuum pump. The cast aluminum housing assures durability. The inlet side vacuum gauge and controller sit atop a catchpot with a built in float ball to protect the pump from flooding. The 2546B-01 is a bargain for it's performance and quality, without competition. Warning: The 2546B-01 is a standard duty vacuum pump. The 2546B-01 pump will fail prematurely if operated on chemical duty applications. Please consult your Chemtech Scientific Representative for consultation, should your process include organic/acid/base/corrosive materials. |
|
| What's included | Vacuum and pressure gauges, controller, float ball flooding protection |
| Common accessory, not included | Foot switch control 1430A or 1430B |
| Pumping Speed | 45 Lit/min. (1.6 CFM) |
| Max. Vacuum | 60 Torr 27.6" Hg |
| Tubing Needed | 1/4" ID |
| Inlet Connection | UNIBARB |
| Exhaust | 1/4" ID |
| Max. Pressure | 100 PSI |
| Dimensions LxWxH inches | 10x7.5x9 inches |
| Ship Weight | 13 LBS |
| Wiring | 115V, 60 hz |
