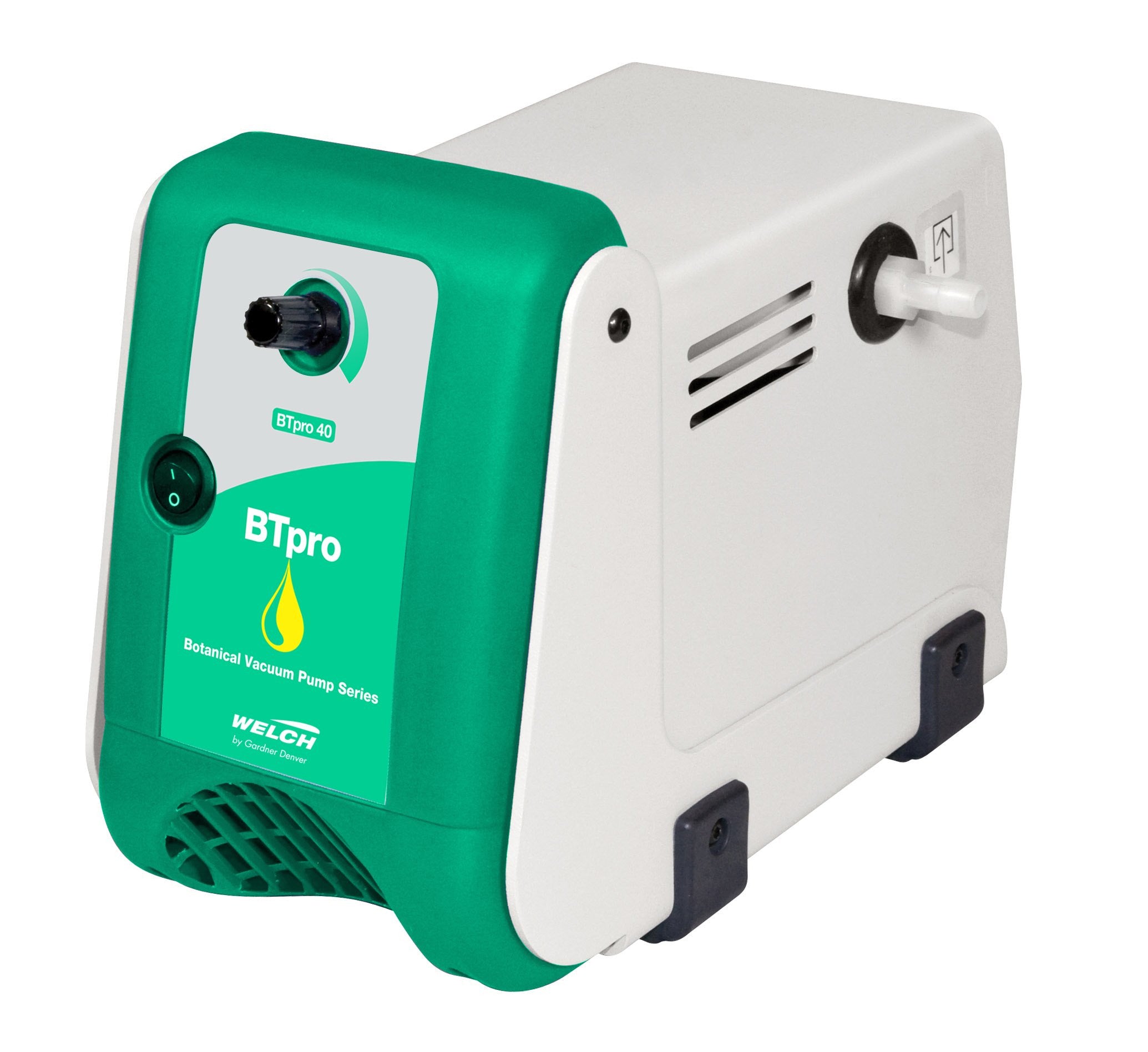

Welch BTpro 40 Diaphragm Pump with cUL

Price Each

Quantity

Price:

$ 1,498.15

 $ 1,805.00
Quantity:
Add to Cart

Welch’s BTpro vacuum pump series has a flow and vacuum level to provide fast performance for your size of rotary evaporator, glass reactor, purge oven, or winterization filtration apparatus.
These chemical duty PTFE diaphragm pumps are oil-free. The pumping action and deep vacuum comes from the movement of PTFE diaphragms within PTFE heads. All wetted services in the flow path are made of fluoroplastic making the BTpro pump highly chemically resistant. As a result, the BTpro vacuum pump series is near-zero maintenance. A cold trap placed in-line with BTpro pump is needed if terpenes are part of the flow path.

BTpro  Technical Specifications Model

BTpro40

Free Air Displacement@60Hz, lpm(CFM)

40(1.4)

Ultimate Vacuum Pressure, Torr

15

Maximum Vacuum, in. Hg

29.3

Horsepower, HP (watts)

1/5(150)

Built-in adjustable vacuum

Yes

Gas Ballast

--

Head Material

PTFE

Diaphragm

PTFE

Inlet/outlet Connection

3/8” barb

Agency (National Recognized Lab)

CSA

Weight, lbs (kg)

15.0(6.8)

Overall Dimensions

LxWxH in.(cm)

12x7x8.3 (31x18x22)

Shipping Weight, lbs(kg)

19(8.6)

Shipping Carton Dimensions

LxWxH in.(cm)

21x14x15

(52x35x37)

115V 60Hz 1Ph with N.American plug

7010-01

Welch’s BTpro vacuum pump series has a flow and vacuum level to provide fast performance for your size of rotary evaporator, glass reactor, purge oven, or winterization filtration apparatus.
These chemical duty PTFE diaphragm pumps are oil-free. The pumping action and deep vacuum comes from the movement of PTFE diaphragms within PTFE heads. All wetted services in the flow path are made of fluoroplastic making the BTpro pump highly chemically resistant. As a result, the BTpro vacuum pump series is near-zero maintenance. A cold trap placed in-line with BTpro pump is needed if terpenes are part of the flow path.

BTpro  Technical Specifications Model

BTpro40

Free Air Displacement@60Hz, lpm(CFM)

40(1.4)

Ultimate Vacuum Pressure, Torr

15

Maximum Vacuum, in. Hg

29.3

Horsepower, HP (watts)

1/5(150)

Built-in adjustable vacuum

Yes

Gas Ballast

--

Head Material

PTFE

Diaphragm

PTFE

Inlet/outlet Connection

3/8” barb

Agency (National Recognized Lab)

CSA

Weight, lbs (kg)

15.0(6.8)

Overall Dimensions

LxWxH in.(cm)

12x7x8.3 (31x18x22)

Shipping Weight, lbs(kg)

19(8.6)

Shipping Carton Dimensions

LxWxH in.(cm)

21x14x15

(52x35x37)

115V 60Hz 1Ph with N.American plug

7010-01
