Product Gallery Welch 3166E - 01 - Chemtech Scientific Incorporated

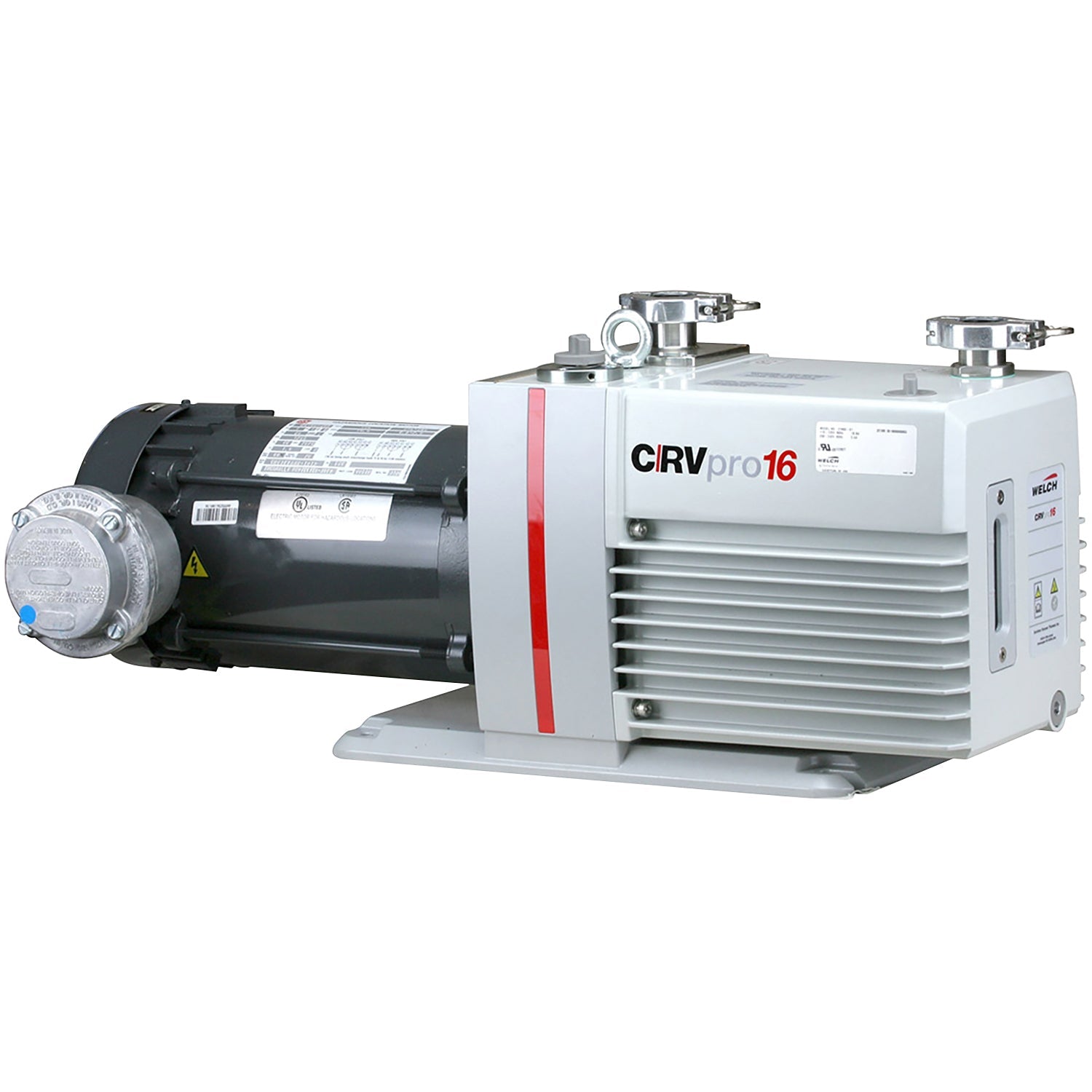

Welch 3166E-01 CRVpro 16 with Explosion Proof Motor Vacuum Pump

Price Each

Quantity

Price:

$ 5,891.34

 $ 7,098.00
Quantity:
Add to Cart

The Welch 3166E-01 CRVpro 16 is a two-stage, oil-sealed direct-drive rotary vane vacuum pump. This configuration is supplied with an explosion-proof motor. Confirm the motor nameplate and installation requirements for the intended location.

Welch 3166E-01 specifications

Catalog number 3166E-01
Configuration Explosion-proof motor
Electrical 115 / 208–230 V, 60 Hz, 1 phase
Free-air displacement at 60 Hz 12.8 CFM (363 L/min)
Published ultimate pressure 0.002 Torr
Inlet / exhaust flanges NW25

Applications and pump selection

Typical applications include vacuum drying, laboratory vacuum manifolds, backing compatible high-vacuum pumps. The motor designation applies to the motor. Have a qualified installer verify the motor markings, wiring and suitability of the complete installation. A cord and switch are not supplied. Free-air displacement is measured near atmospheric inlet pressure. Ultimate pressure is a pump rating under test conditions.

Documentation and technical support

Welch CRVpro series brochure (PDF)

Ask Chemtech Scientific about pump sizing, the owner’s manual, exhaust filters and service kits for the Welch 3166E-01.

Chemtech Scientific Welch 3166E-01 product flyer

The Welch 3166E-01 CRVpro 16 is a two-stage, oil-sealed direct-drive rotary vane vacuum pump. This configuration is supplied with an explosion-proof motor. Confirm the motor nameplate and installation requirements for the intended location.

Welch 3166E-01 specifications

Catalog number 3166E-01
Configuration Explosion-proof motor
Electrical 115 / 208–230 V, 60 Hz, 1 phase
Free-air displacement at 60 Hz 12.8 CFM (363 L/min)
Published ultimate pressure 0.002 Torr
Inlet / exhaust flanges NW25

Applications and pump selection

Typical applications include vacuum drying, laboratory vacuum manifolds, backing compatible high-vacuum pumps. The motor designation applies to the motor. Have a qualified installer verify the motor markings, wiring and suitability of the complete installation. A cord and switch are not supplied. Free-air displacement is measured near atmospheric inlet pressure. Ultimate pressure is a pump rating under test conditions.

Documentation and technical support

Welch CRVpro series brochure (PDF)

Ask Chemtech Scientific about pump sizing, the owner’s manual, exhaust filters and service kits for the Welch 3166E-01.

Chemtech Scientific Welch 3166E-01 product flyer
