Welch 1402C-01 Vacuum Pump

Price Each

Estimated Delivery

Quantity

Action

Price:

$ 2,803.60

 $ 3,260.00

5 days

Quantity:

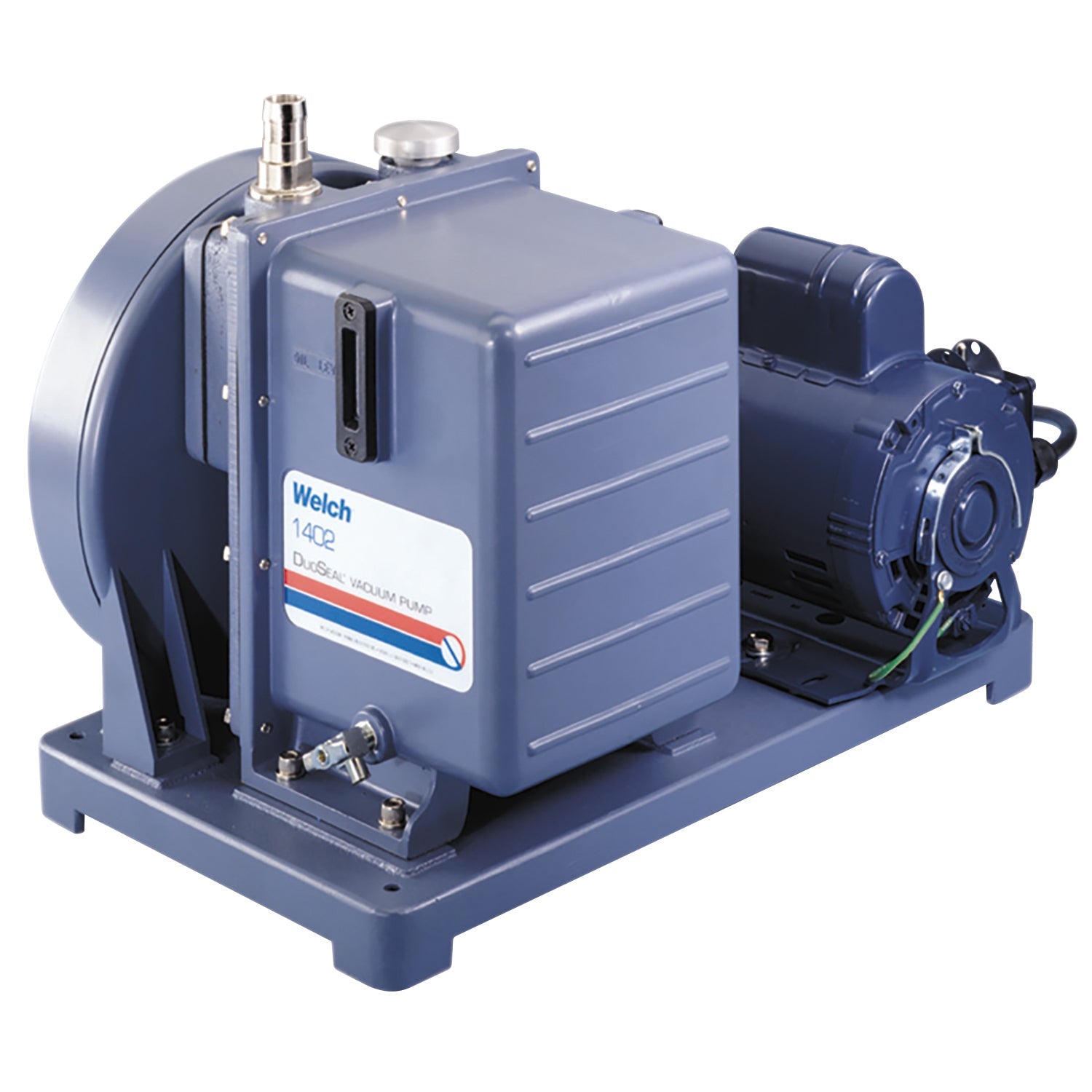

The Welch 1402C-01 vacuum pump is a rugged and robust vacuum pump for applications requiring pressures < 1 Torr. The 1402C-01 achieves < 0.001 Torr with a pumping speed of 160 liters/min (5.6 CFM).

Two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this vacuum pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr.

What's included 3 qts DuoSeal oil, 1407K-11
Common accessory, not included Exhaust filter 1417P-10
Pumping Speed 5.6 CFM (160 l/min)
Max. Vacuum 0.001 torr
Oil Capacity 2.25 qt(2.1 l)
Tubing Needed 13/16"(21 mm)
Exhaust ./ Intake threads 1-20
Pump RPM 525
Dimensions LxWxH 20"x12"x15"
Weight 112 lb (51 kg)
Wiring 230V, 60 hz

The Welch 1402C-01 vacuum pump is a rugged and robust vacuum pump for applications requiring pressures < 1 Torr. The 1402C-01 achieves < 0.001 Torr with a pumping speed of 160 liters/min (5.6 CFM).

Two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this vacuum pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr.

What's included 3 qts DuoSeal oil, 1407K-11
Common accessory, not included Exhaust filter 1417P-10
Pumping Speed 5.6 CFM (160 l/min)
Max. Vacuum 0.001 torr
Oil Capacity 2.25 qt(2.1 l)
Tubing Needed 13/16"(21 mm)
Exhaust ./ Intake threads 1-20
Pump RPM 525
Dimensions LxWxH 20"x12"x15"
Weight 112 lb (51 kg)
Wiring 230V, 60 hz
