NW50 Manual Right Angle Valve (MRV-NW50-VE)
MRV-NW50-VE
NW50 (KF50) Manual Right Angle Valve
Manual Bellows Sealed SS Angle Valve
Vacuum Essential
• High Vacuum Valve
• HV Elastomer Sealed Poppet Valve
• Viton Seals (Fluorocarbon, FKM) Seals

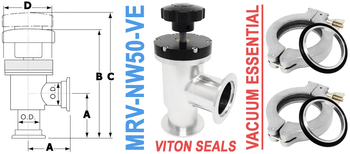

• A: 3.00"
• B: 7.80"
• C: 9.50"
• D: 3.33"
• Leak rate across seat: 1x10-9 mbar L/s
• Pressure Minimum: 1x10-9 Torr
• Pressure Maximum: Atmospheric pressure
NW50 (KF50) Flange OD: Ø2.95"
• NW50 Tube OD: 2"
• NW50 Centering Ring Counter Bore: 2.06"
NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF
MRV-NW50 MRV-2002-NWB
