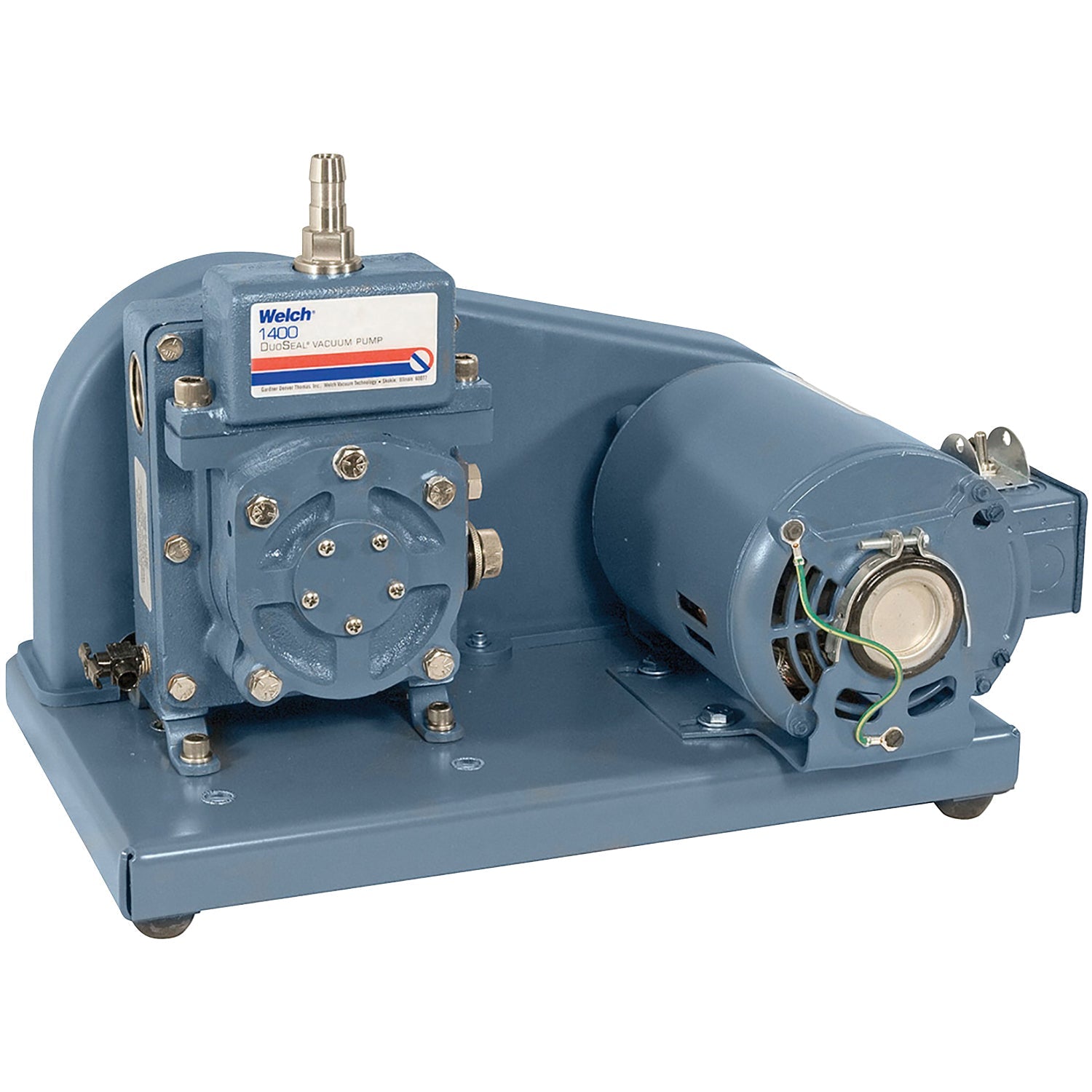

Welch 1400C-01, Vacuum Pump

Price Each	Quantity
Price: $ 2,680.90 $ 3,230.00	Quantity:	Add to Cart

The Welch 1400C-01 vacuum pump is a rugged and robust vacuum pump for applications requiring pressures < 1 Torr. The 1400C-01 achieves < 0.001 Torr with a pumping speed of 25 liters/min (0.9 CFM). Two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this vacuum pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr.
What's included	1 qt DuoSeal oil, 1407K-11

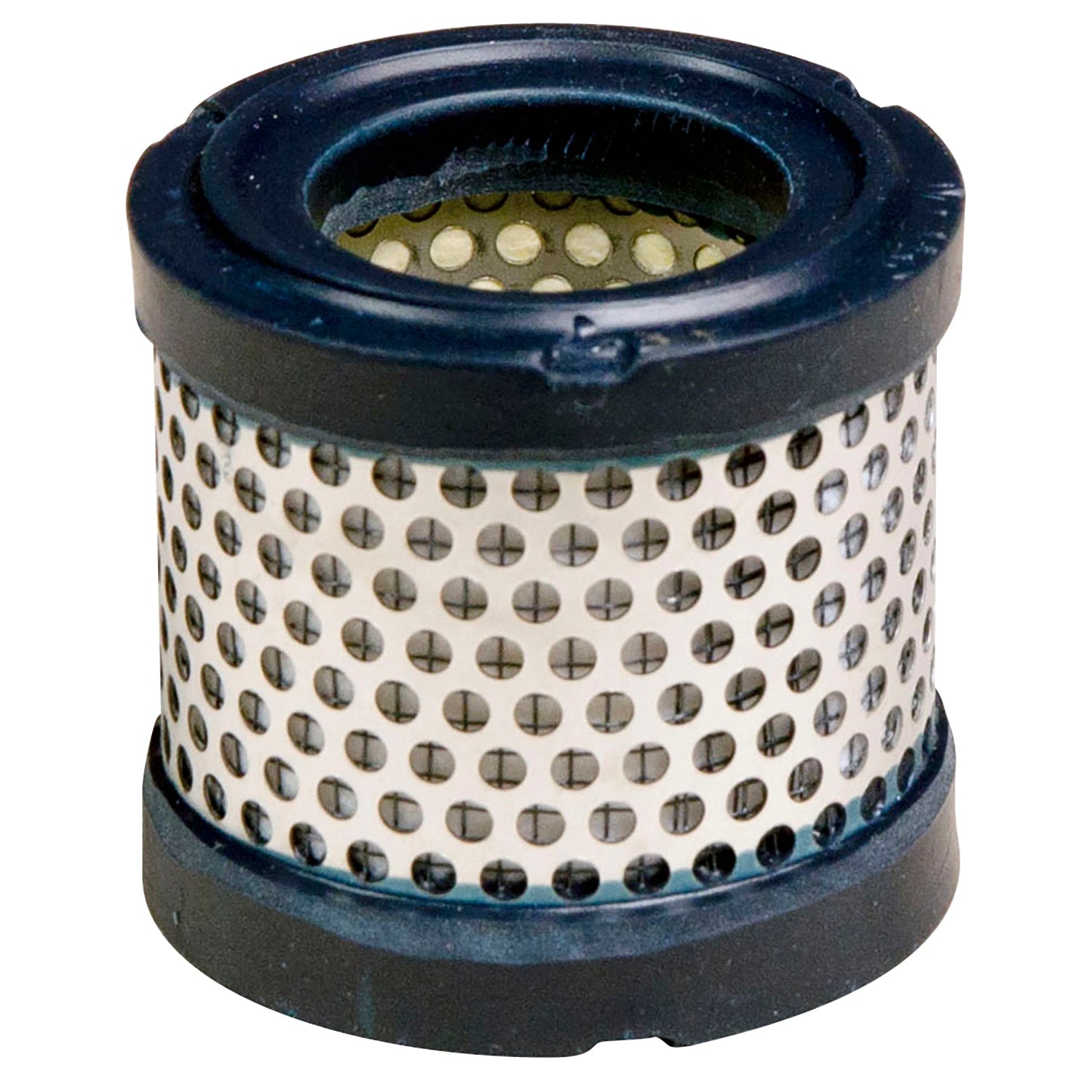

Common accessory, not included	Exhaust filter 1417
Pumping Speed	0.9 CFM (25 l/min)
Max. Vacuum	0.001 torr
Oil Capacity	0.62 qt(0.59 l)
Tubing Needed	7/16"(11 mm)
Exhaust / Intake threads	3/4-20
Pump RPM	580
Dimensions LxWxH	17.8"x9"x12.6"
Weight	70 lb (31.8 kg)
Wiring	230V, 60 hz

The Welch 1400C-01 vacuum pump is a rugged and robust vacuum pump for applications requiring pressures < 1 Torr. The 1400C-01 achieves < 0.001 Torr with a pumping speed of 25 liters/min (0.9 CFM). Two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this vacuum pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty. Please consult your Chemtech Scientific Representative for consultation, should the ultimate pressure of your process run above 1 Torr.
What's included	1 qt DuoSeal oil, 1407K-11
Common accessory, not included	Exhaust filter 1417
Pumping Speed	0.9 CFM (25 l/min)
Max. Vacuum	0.001 torr
Oil Capacity	0.62 qt(0.59 l)
Tubing Needed	7/16"(11 mm)
Exhaust / Intake threads	3/4-20
Pump RPM	580
Dimensions LxWxH	17.8"x9"x12.6"
Weight	70 lb (31.8 kg)
Wiring	230V, 60 hz
