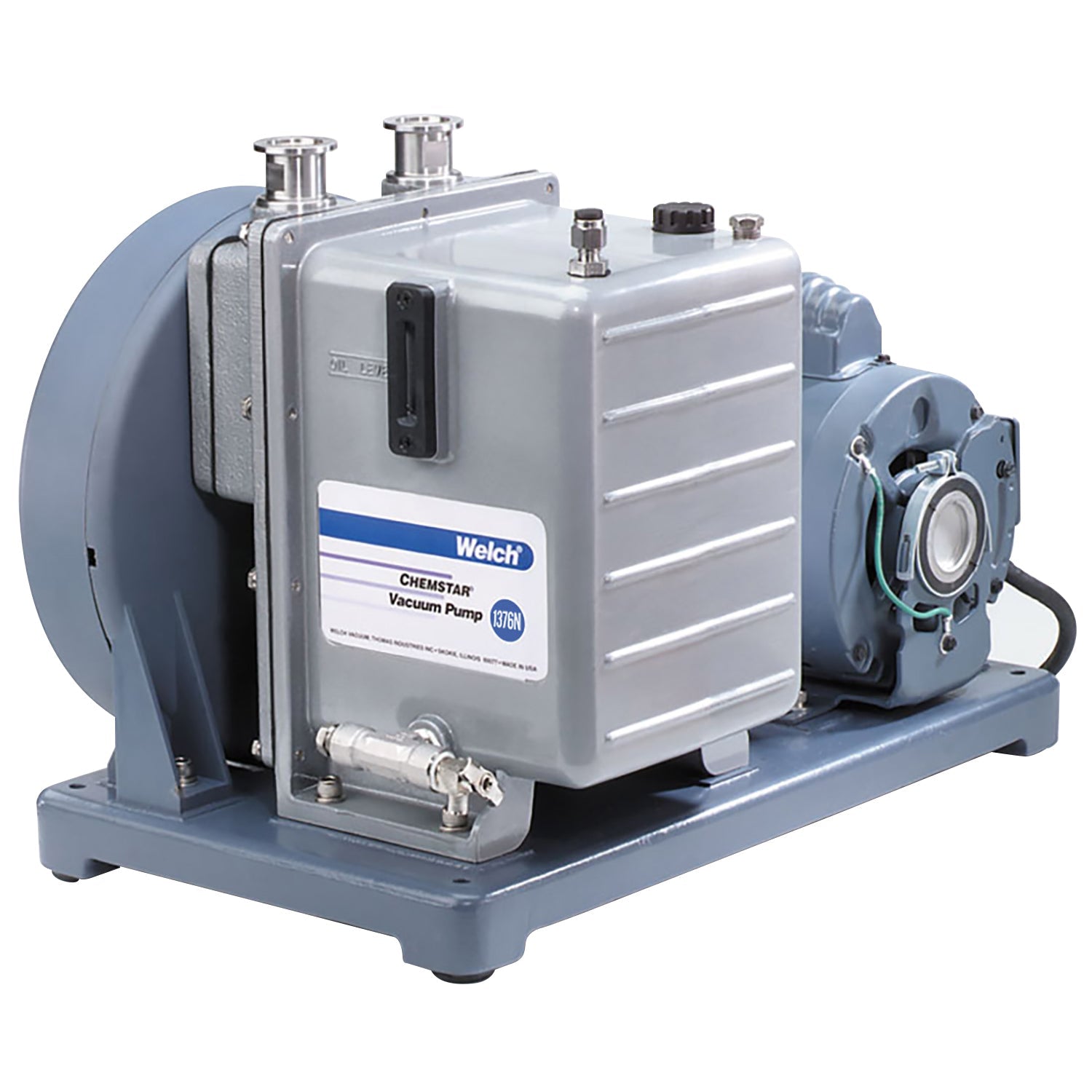

Welch 1376N-01 Chemstar Vacuum Pump
Welch 1376N-01 ChemStar Vacuum Pump – 10.6 CFM
The Welch 1376N-01 ChemStar is a specialized, chemically resistant vacuum pump designed for demanding applications involving corrosive vapors and harsh chemicals.
Welch 1376N-01 Chemstar Vacuum Pump has a Teflon lined oil case and additional chemically resistant parts, making the Chemstar pump the best choice for harsh process emissions where an oil sealed vacuum pump is necessary.
ChemStar high vacuum pump Model 1376N provides versatile effectiveness for corrosive gas pumping or problematic drying operations. Use in pilot plant, scale-up operations, harsh chemical vessel evacuations, or light industrial operations throughout the laboratory. With ultimate vacuum <0.001 torr, and maximum 300 lpm flow, use Model 1376N for large vacuum ovens (> 9 ft³), freeze drying generating corrosive vapors, etc.
This is the fully mounted version, complete with base and motor for convenient installation.
Key Features
- Teflon-lined oil case and chemically resistant internal parts
- 10.6 CFM (300 L/min) pumping speed
- Ultimate vacuum down to < 0.001 Torr
- Excellent performance with corrosive and aggressive vapors
- Durable DUOSEAL rotary vane technology
- Fully mounted with base and motor
Ideal Applications
- Corrosive gas pumping
- Freeze drying with aggressive vapors
- Large vacuum ovens (> 9 ft³)
- Pilot plant and scale-up operations
- Harsh chemical vessel evacuations
- Light industrial processes
The Welch ChemStar series is built for reliability in tough chemical environments where standard vacuum pumps would fail prematurely.
Need technical advice or compatibility confirmation? Email support@chemtechsci.com or call (484) 424-9415.
| What's included | 3 liters Gold oil, 8995G-11 |
| Common accessory, not included | Exhaust filter 1417P-10 |
| Pumping Speed | 10.6 CFM (300 l/min) |
| Max. Vacuum | 0.0001 Torr |
| Oil Capacity | 2.25 qt(2.1 l) |
| Tubing Needed | 13/16"(21 mm) |
| Exhaust / Intake Flange | NW 25 |
| Pump RPM | 525 |
| Dimensions LxWxH | 19.3"x12.3"x15.6" |
| Weight | 156 lb (71 kg) |
| Wiring | 115V, 60 hz |
Welch 1376N-01 ChemStar Vacuum Pump – 10.6 CFM
The Welch 1376N-01 ChemStar is a specialized, chemically resistant vacuum pump designed for demanding applications involving corrosive vapors and harsh chemicals.
Welch 1376N-01 Chemstar Vacuum Pump has a Teflon lined oil case and additional chemically resistant parts, making the Chemstar pump the best choice for harsh process emissions where an oil sealed vacuum pump is necessary.
ChemStar high vacuum pump Model 1376N provides versatile effectiveness for corrosive gas pumping or problematic drying operations. Use in pilot plant, scale-up operations, harsh chemical vessel evacuations, or light industrial operations throughout the laboratory. With ultimate vacuum <0.001 torr, and maximum 300 lpm flow, use Model 1376N for large vacuum ovens (> 9 ft³), freeze drying generating corrosive vapors, etc.
This is the fully mounted version, complete with base and motor for convenient installation.
Key Features
- Teflon-lined oil case and chemically resistant internal parts
- 10.6 CFM (300 L/min) pumping speed
- Ultimate vacuum down to < 0.001 Torr
- Excellent performance with corrosive and aggressive vapors
- Durable DUOSEAL rotary vane technology
- Fully mounted with base and motor
Ideal Applications
- Corrosive gas pumping
- Freeze drying with aggressive vapors
- Large vacuum ovens (> 9 ft³)
- Pilot plant and scale-up operations
- Harsh chemical vessel evacuations
- Light industrial processes
The Welch ChemStar series is built for reliability in tough chemical environments where standard vacuum pumps would fail prematurely.
Need technical advice or compatibility confirmation? Email support@chemtechsci.com or call (484) 424-9415.
| What's included | 3 liters Gold oil, 8995G-11 |
| Common accessory, not included | Exhaust filter 1417P-10 |
| Pumping Speed | 10.6 CFM (300 l/min) |
| Max. Vacuum | 0.0001 Torr |
| Oil Capacity | 2.25 qt(2.1 l) |
| Tubing Needed | 13/16"(21 mm) |
| Exhaust / Intake Flange | NW 25 |
| Pump RPM | 525 |
| Dimensions LxWxH | 19.3"x12.3"x15.6" |
| Weight | 156 lb (71 kg) |
| Wiring | 115V, 60 hz |
-
Welch 1393G ISO Adapter NW25 for 1405, 1402, 1376 -
Welch 1416C-01 -

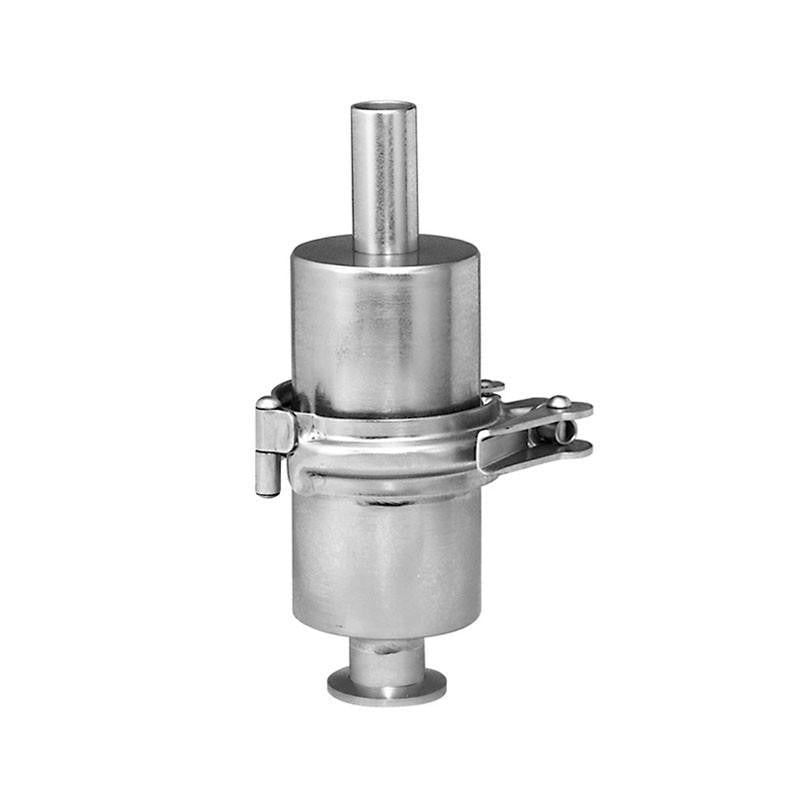

Welch 1416D -
