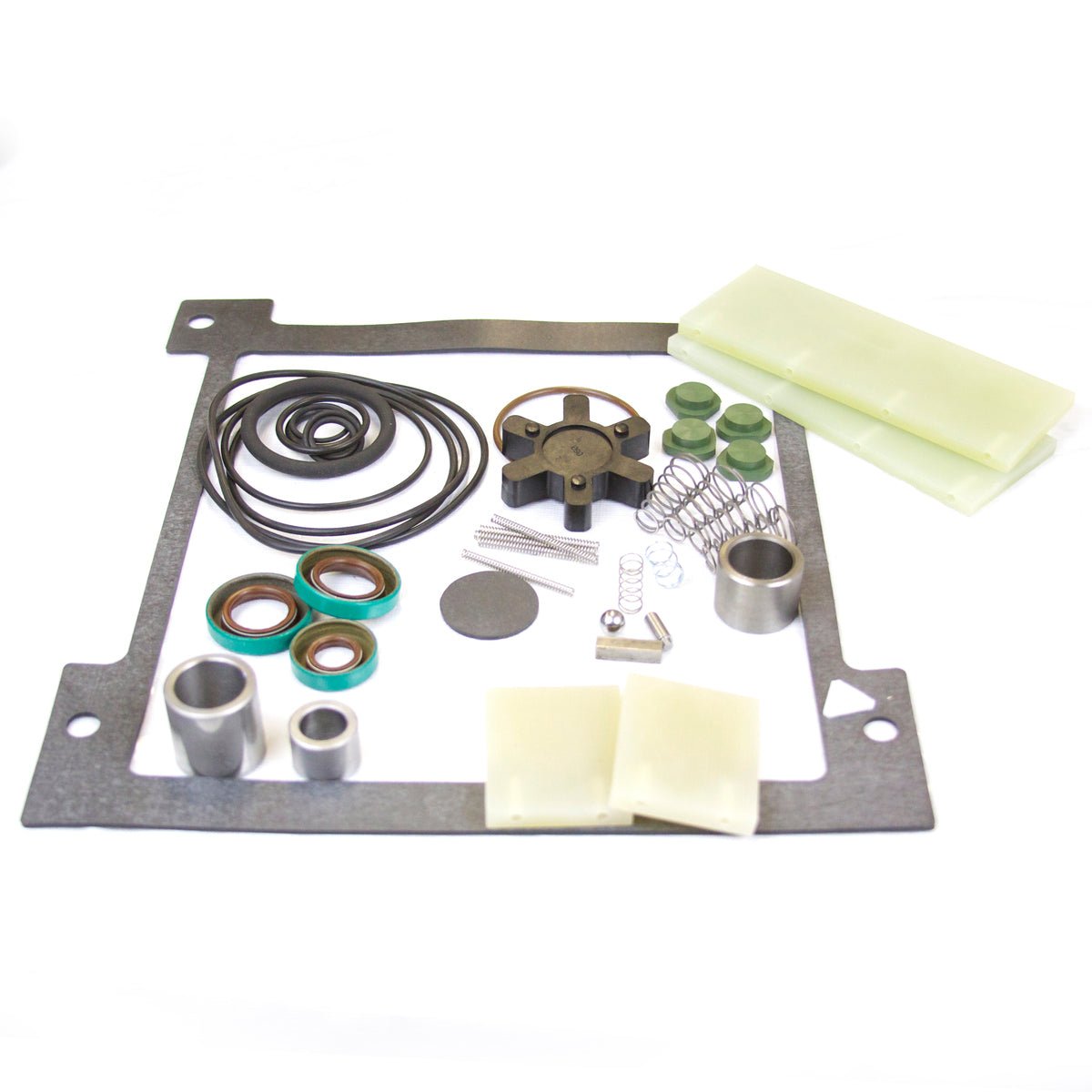

Major Repair Kit 4240771KIT
Used on Stokes MicroVane 013
Major Kit with Vanes includes; O-rings, gaskets, Valves, springs, coupling elements, Vanes, springs & bushings for major overhaul.
General product classifications
| Brand | Stokes |
| Family | MicroVane |
| Pump models | 013 |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | STOKES-94 |
| Part number alternatives | 23S-013-V |
| PART NUMBER | DESCRIPTION | QUANTITY |
|---|---|---|
| 085039263 | Shaft Seal, Lip - Viton, Stokes, Microvane, Part# 85039263 | 1 |
| 085039279 | Compression Spring, Stokes, Microvane, Part# 85039279 | 1 |
| 01855 | Steel Ball, Stokes, Microvane, Part# 1855 | 1 |
| 085018635 | O-Ring,Viton,1-13/16 id x 3/32" | 1 |
| 085027613 | O-Ring,Viton,12.70 x 2.62mm | 1 |
| 085037672 | O-Ring,Viton,.644 x .087" | 2 |
| 085-039-187 | Oil Seal | 2 |
| 085039189 | O-ring, 41.28 x 2.62 mm - Viton, Part# 85039189 | 1 |
| 085039191 | O-Ring,Viton,.41.28 x 5.33mm | 1 |
| 085039280 | Compression Spring, Stokes, Microvane, Part# 85039280 | 6 |
| 085039449 | Spider Coupling, L-075, Stokes, Microvane, Part# 85039449 | 1 |
| 085040204 | O-ring, 26.64 x 2.62 mm - Viton, Part# 085040204 | 1 |
| 085039252 | O-Ring,Viton,.19.05 x 3.53mm | 1 |
| 085-040-224 | Compression Spring, Stainless Steel | 1 |
| 427-647-002 | Pin, Gerotor Drive | 1 |
| 429925001 | Anti - Suckback Valve, Stokes, Microvane, Part# 429925001 | 1 |
| 429345001 | Exhaust Valve, Stokes, Microvane, Part# 429345001 | 4 |
| 429314001 | Exhaust Valve Spring, Stokes, Microvane, Part# 429314001 | 4 |
| 4276051G | Vane, 1st Stage - GX, Stokes, Microvane, Part# 4276051G | 2 |
| 4276061G | Vane, 2nd Stage - GX - Stokes, Microvane, Part# 4276061G | 2 |
| 427649001 | Key, Steel, Stokes, Microvane, Part# 427649001 | 1 |
| 427716001 | Gas Ballast Valve, Teflon, Stokes, Microvane, Part# 427716001 | 1 |
| 4279502 | Case Gasket, Stokes, Microvane, Part# 4279502 | 1 |
| 428-217-001 | Bearing End | 1 |
| 428219001 | Bushing, Front plate-Stokes Microvane, Part# 428219001 | 2 |
