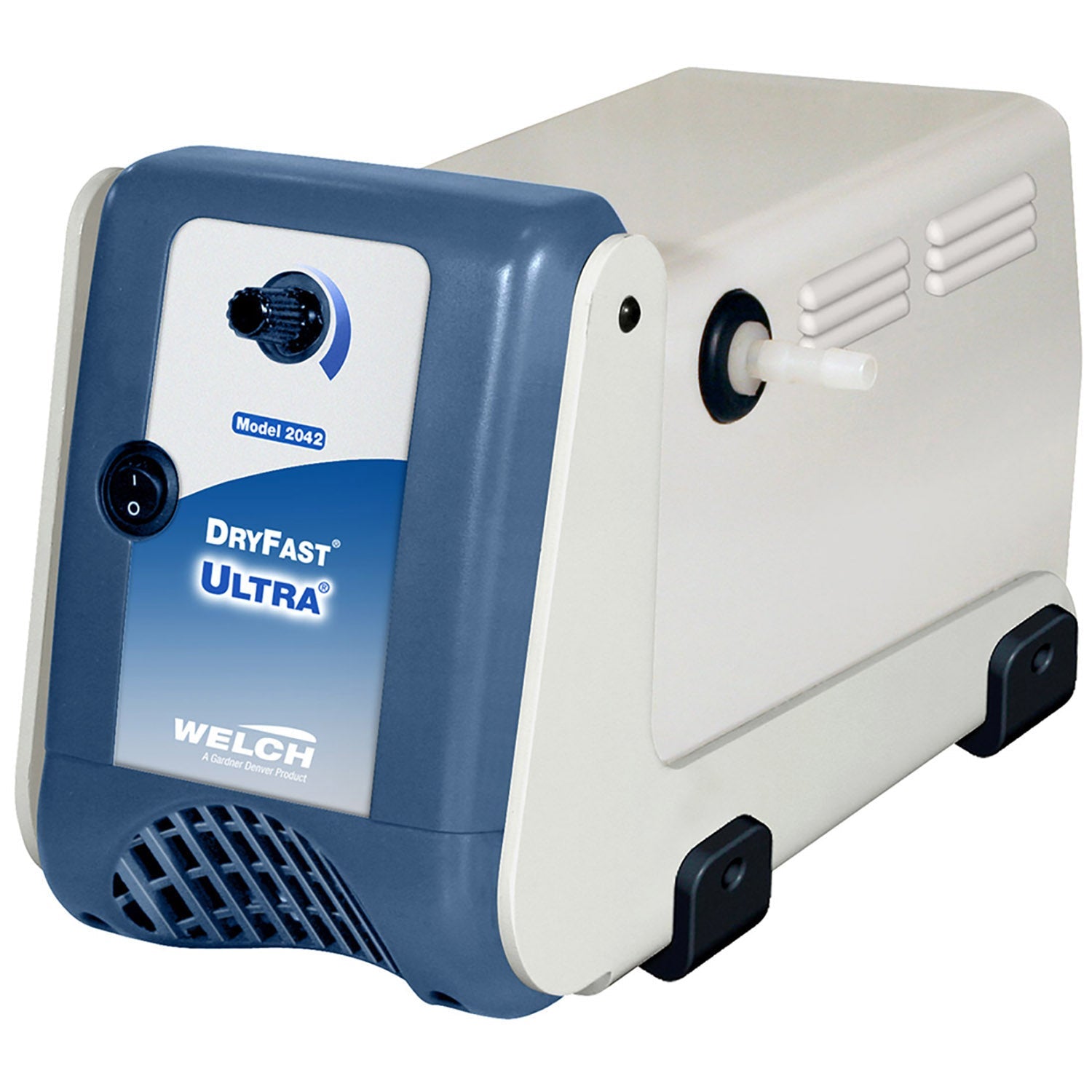

Welch 2042B-01 DryFast Ultra Diaphragm Vacuum Pump

Price Each

Quantity

Price:

$ 3,946.65

 $ 4,755.00
Quantity:
Add to Cart

The Welch 2042B-01 is an oil-free dryfast ultra diaphragm vacuum pump rated at 35 L/min and 2 Torr (2.7 mbar) ultimate pressure. This configuration uses 115 V, 60 Hz.

Welch 2042B-01 specifications

Model 2042B-01
Free-air displacement at 60 Hz 35 L/min
Ultimate pressure 2 Torr (2.7 mbar)
Electrical 115 V, 60 Hz
Configuration Front-panel vacuum adjustment
Tubing ID 1/4 in. (7 mm nominal)
Weight 21.25 lb (9.6 kg)

Applications and pump selection

Consider this model for rotary evaporation or vacuum drying when the operating pressure is comfortably above 2 Torr. For solvent work, confirm compatibility with the wetted materials and size any condenser or inlet trap for the expected vapor load.

Tell us your target operating pressure, process load, and vessel size so we can help select the right pump. Free-air displacement is measured at atmospheric inlet pressure.

Manual, service kit, and application support

Chemtech Scientific Welch 2042B-01 product flyer

The Welch 2042B-01 is an oil-free dryfast ultra diaphragm vacuum pump rated at 35 L/min and 2 Torr (2.7 mbar) ultimate pressure. This configuration uses 115 V, 60 Hz.

Welch 2042B-01 specifications

Model 2042B-01
Free-air displacement at 60 Hz 35 L/min
Ultimate pressure 2 Torr (2.7 mbar)
Electrical 115 V, 60 Hz
Configuration Front-panel vacuum adjustment
Tubing ID 1/4 in. (7 mm nominal)
Weight 21.25 lb (9.6 kg)

Applications and pump selection

Consider this model for rotary evaporation or vacuum drying when the operating pressure is comfortably above 2 Torr. For solvent work, confirm compatibility with the wetted materials and size any condenser or inlet trap for the expected vapor load.

Tell us your target operating pressure, process load, and vessel size so we can help select the right pump. Free-air displacement is measured at atmospheric inlet pressure.

Manual, service kit, and application support

Chemtech Scientific Welch 2042B-01 product flyer
