Product Gallery Welch 2037B - 01 DryFast Chemical Duty Diaphragm Vacuum Pump - Chemtech Scientific Incorporated

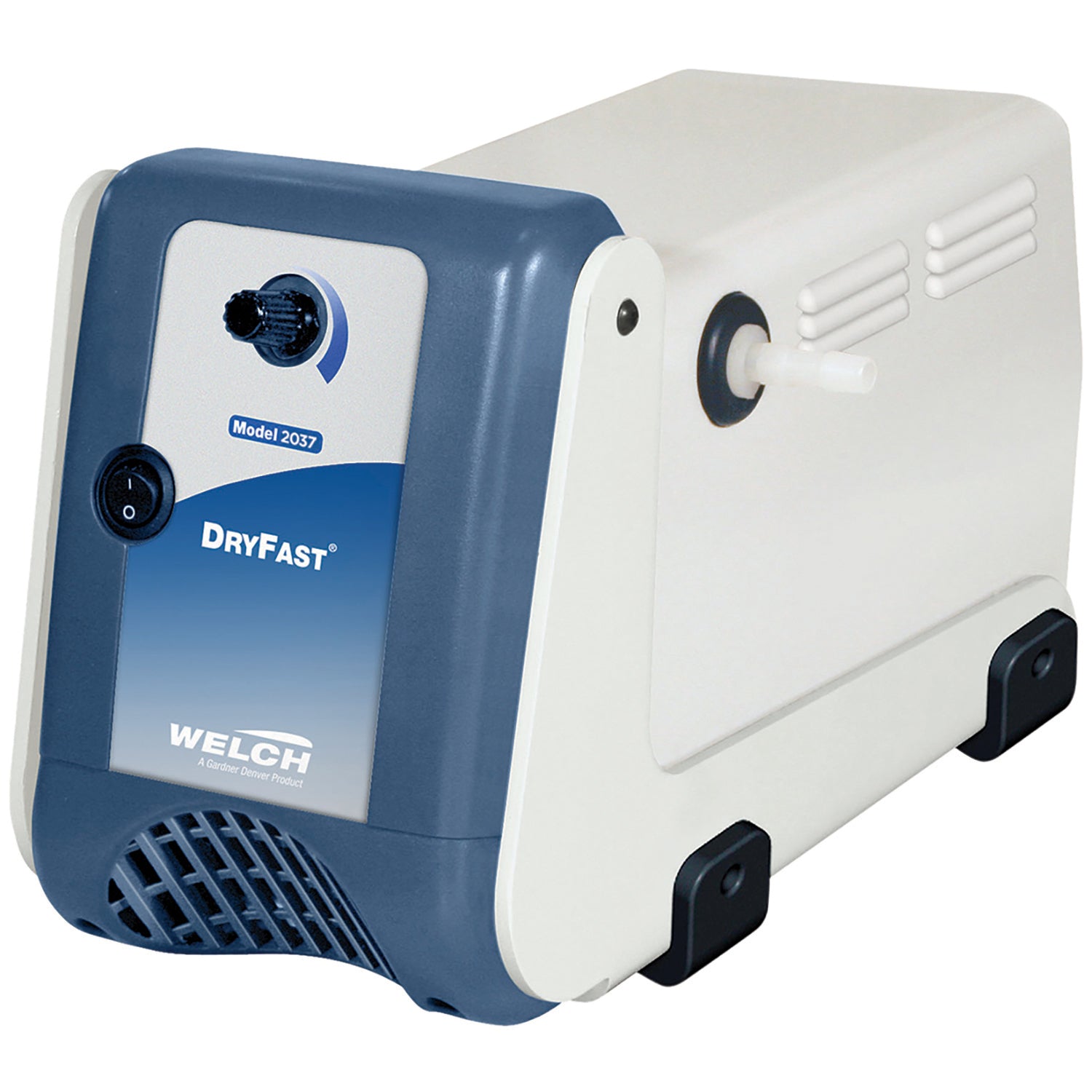

Welch 2037B-01 DryFast Chemical Duty Diaphragm Vacuum Pump

Price Each

Quantity

Price:

$ 2,703.31

 $ 3,257.00
Quantity:
Add to Cart

The Welch 2037B-01 is an oil-free dryfast chemical duty diaphragm vacuum pump rated at 50 L/min and 35 Torr (47 mbar) ultimate pressure. This configuration uses 115 V, 60 Hz.

Welch 2037B-01 specifications

Model 2037B-01
Free-air displacement at 60 Hz 50 L/min
Ultimate pressure 35 Torr (47 mbar)
Electrical 115 V, 60 Hz
Configuration Front-panel vacuum adjustment
Tubing ID 1/4 in. (7 mm nominal)
Weight 21.25 lb (9.6 kg)

Applications and pump selection

Consider this model for vacuum filtration or degassing when the operating pressure is comfortably above 35 Torr. For solvent work, confirm compatibility with the wetted materials and size any condenser or inlet trap for the expected vapor load.

Tell us your target operating pressure, process load, and vessel size so we can help select the right pump. Free-air displacement is measured at atmospheric inlet pressure.

Manual, service kit, and application support

Chemtech Scientific Welch 2037B-01 product flyer

The Welch 2037B-01 is an oil-free dryfast chemical duty diaphragm vacuum pump rated at 50 L/min and 35 Torr (47 mbar) ultimate pressure. This configuration uses 115 V, 60 Hz.

Welch 2037B-01 specifications

Model 2037B-01
Free-air displacement at 60 Hz 50 L/min
Ultimate pressure 35 Torr (47 mbar)
Electrical 115 V, 60 Hz
Configuration Front-panel vacuum adjustment
Tubing ID 1/4 in. (7 mm nominal)
Weight 21.25 lb (9.6 kg)

Applications and pump selection

Consider this model for vacuum filtration or degassing when the operating pressure is comfortably above 35 Torr. For solvent work, confirm compatibility with the wetted materials and size any condenser or inlet trap for the expected vapor load.

Tell us your target operating pressure, process load, and vessel size so we can help select the right pump. Free-air displacement is measured at atmospheric inlet pressure.

Manual, service kit, and application support

Chemtech Scientific Welch 2037B-01 product flyer
