Product Gallery Welch 202701 Self  Cleaning Vacuum Pump - Chemtech Scientific Incorporated

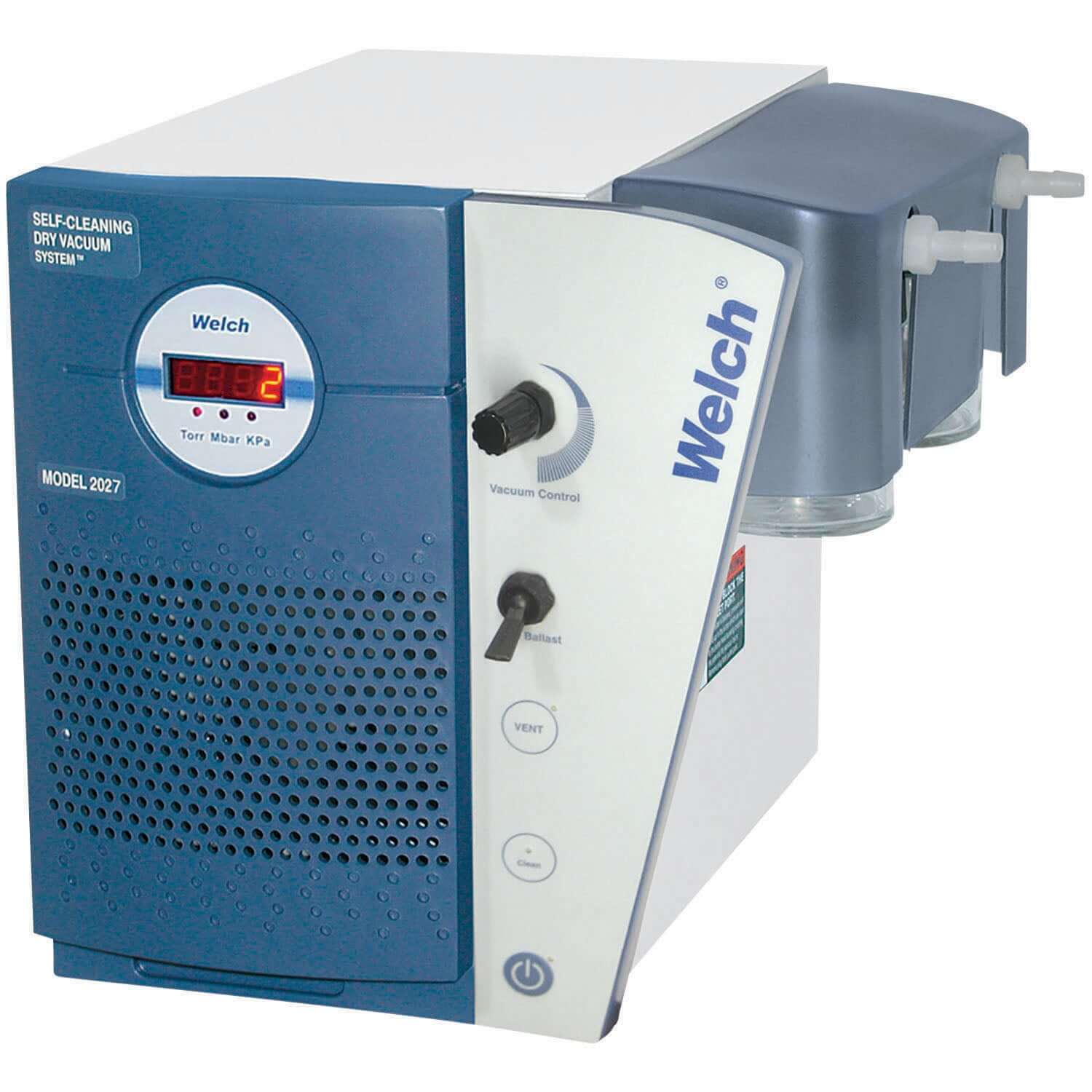

Welch 202701 Self-Cleaning PTFE Dry Vacuum System

Price Each

Quantity

Price:

$ 5,058.02

 $ 6,094.00
Quantity:
Add to Cart

The Welch 202701 is an oil-free self-cleaning ptfe dry vacuum system rated at 35 L/min and 2 Torr (2.7 mbar) ultimate pressure. This configuration uses 115 V, 60 Hz.

Welch 202701 specifications

Model 202701
Free-air displacement at 60 Hz 35 L/min
Ultimate pressure 2 Torr (2.7 mbar)
Electrical 115 V, 60 Hz
Configuration Digital vacuum readout and manual adjustment
Tubing ID 1/4 in. (7 mm nominal)
Weight 30 lb (13.6 kg)

The flow shown is Welch’s published product-line rating. Some editions of the operating manual list different displacement figures.

Applications and pump selection

Consider this system for rotary evaporation or vacuum drying when the solvent and process temperature call for an operating pressure comfortably above 2 Torr. Its integrated inlet and outlet separators help collect condensate, and the automatic shutdown purge helps clear residual vapor.

Tell us your target operating pressure, process load, and vessel size so we can help select the right pump. Free-air displacement is measured at atmospheric inlet pressure.

Manual, service kit, and application support

Chemtech Scientific Welch 202701 product flyer

The Welch 202701 is an oil-free self-cleaning ptfe dry vacuum system rated at 35 L/min and 2 Torr (2.7 mbar) ultimate pressure. This configuration uses 115 V, 60 Hz.

Welch 202701 specifications

Model 202701
Free-air displacement at 60 Hz 35 L/min
Ultimate pressure 2 Torr (2.7 mbar)
Electrical 115 V, 60 Hz
Configuration Digital vacuum readout and manual adjustment
Tubing ID 1/4 in. (7 mm nominal)
Weight 30 lb (13.6 kg)

The flow shown is Welch’s published product-line rating. Some editions of the operating manual list different displacement figures.

Applications and pump selection

Consider this system for rotary evaporation or vacuum drying when the solvent and process temperature call for an operating pressure comfortably above 2 Torr. Its integrated inlet and outlet separators help collect condensate, and the automatic shutdown purge helps clear residual vapor.

Tell us your target operating pressure, process load, and vessel size so we can help select the right pump. Free-air displacement is measured at atmospheric inlet pressure.

Manual, service kit, and application support

Chemtech Scientific Welch 202701 product flyer

Brochures

Accessories

  • Welch Vacuum 2027 Self Cleaning Dry Pump.pdf
  • Manual

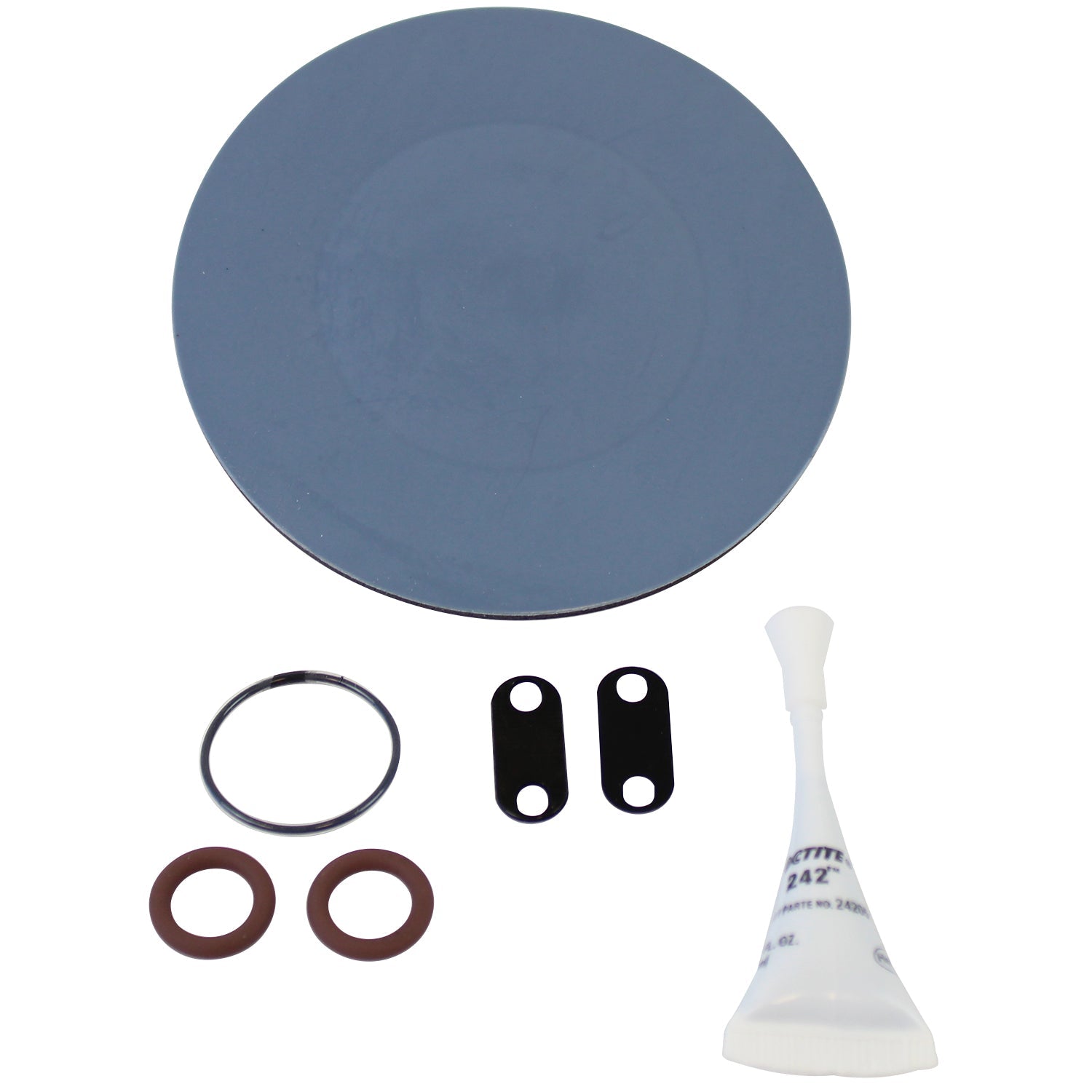

  • Welch 2027K-01 Repair Kits - PTFE Dry Pumps
