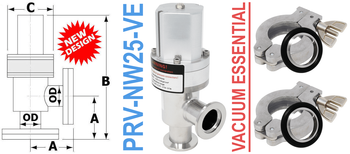

NW25 Pneumatic Angle Valve (PRV-NW25-VE)
PRV-NW25-VE
NW25 (KF25) Pneumatic Right Angle Valve
Vacuum Essential
• A: 1.98"
• B: 6.05"
• C: 2.39"
• Pneumatically Actuated: Air Open, Spring Close
• Viton Elastomer (FKM) Seals
• Additional Product Details on Page Bottom
NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF
NW25 (KF25) Flange OD: Ø1.57"
• NW25 Tube OD: 1.00"
• NW25 Centering Ring Counter Bore: 1.03"
PRV-NW25 Poppet Valve
